Drain And Fill

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

Procedure

WARNING:
  • Observe due care when draining, as the fluid can be very hot.
  • Observe due care when working near a hot exhaust system.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
    1. The following steps must be observed before starting the transmission drain and refill.
    2. Make sure that the electric park brake is applied.
    3. The vehicle must be on a horizontal ramp.
    4. Make sure the transmission control switch (TCS) is in the Park (P) position.
    5. Do not start the engine.
  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to Air Deflector (Front End Body Panels, Removal and Installation).
  4. Place a container under the transmission.

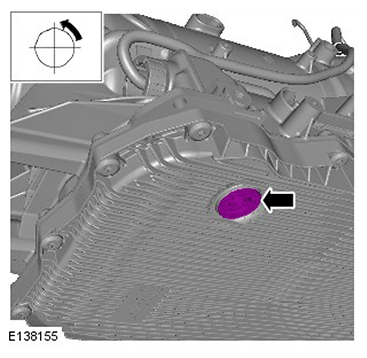

  5. G11417261
    NOTE: Discard the transmission fluid drain plug.

    Allow the fluid to drain into the container.

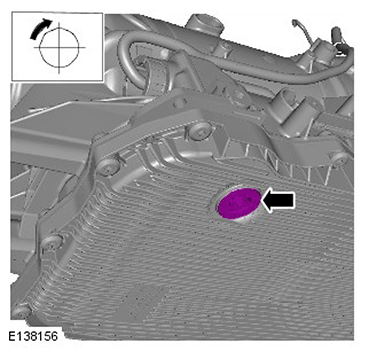

  6. NOTE: Install a new transmission drain plug.
    G11417262

    Torque: 8 Nm

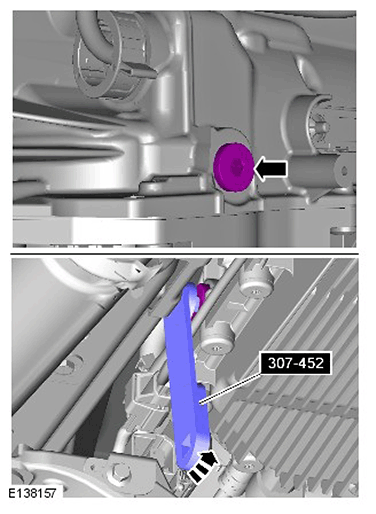

  7. NOTE: Remove the oil filler plug, do not discard.
    G11417263

    Clean the area around the transmission fluid level plug.

    Special Tool(s):  307-452

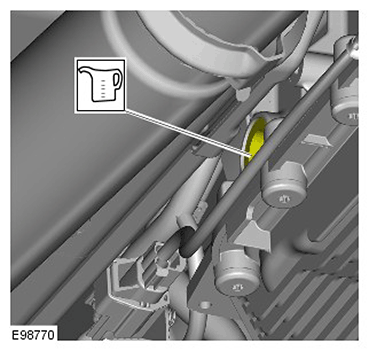

  8. CAUTION: Make sure the correct specification and quantity of oil is used.
    NOTE: Use transmission fluid meeting Jaguar specification.
    G11417264
    • Fill the transmission with the correct specification of fluid. Fill oil through the overflow hole until the level inside is high enough that oil starts to trickle back out of the same hole.

      Refer to Specifications .

    1. Install the fluid level plug, only finger tight at this stage.
    2. Remove the container from under the transmission to avoid damage.
  9. NOTE: The following steps require the aid of another technician, due to controlling the engine speed while the visual check is carried out.
    1. Lower the vehicle.

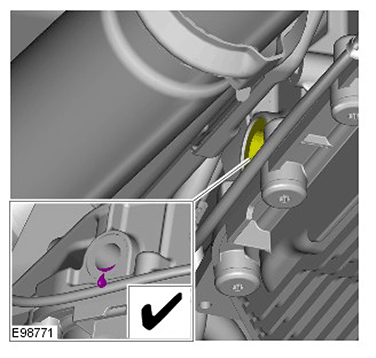

  10. G11417265
    1. Raise the vehicle.
    2. Place the container under the transmission to catch the overflow oil.
    3. Remove the fluid level plug.
    4. Fill oil through the overflow hole until the level inside is high enough that oil starts to trickle back out of the same hole.
    1. Start the engine, and allow to idle.
    2. Increase the engine idle speed to 2000 rpm for 30 seconds, this is to fill the torque converter.
    3. Allow the engine to return to idle speed.
    1. Fill oil through the overflow hole until the level inside is high enough that oil starts to trickle back out of the same hole.

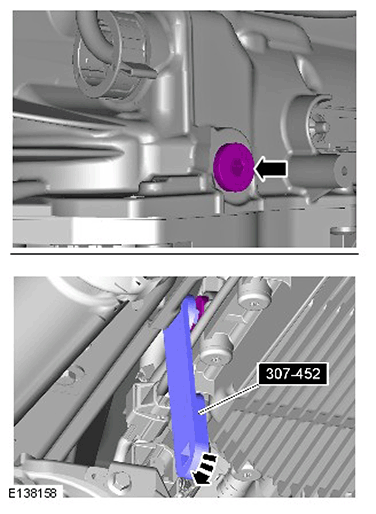

  13. G11417266
    1. NOTE: Vehicle without thermostat.

      Install the filler plug finger-tight and proceed to the transmission fluid check.

    2. NOTE: Vehicles with thermostat.

      Install the oil filler plug temporarily and follow step   13 .

      Special Tool(s):  307-452

      Torque: 20 Nm

    1. Vehicles with thermostat.
    2. Carry out a road test to open the thermostat and allow transmission fluid to fill the circuit.
    3. Use Jaguar approved diagnostic equipment, to ensure transmission temperature does go above the level where the thermostat opens 69°C (156°F).
  15. NOTE: This step is required to complete the procedure.

    Carry out the Transmission Fluid Level Check.

    Refer to Transmission Fluid Level Check  (General Procedures).
