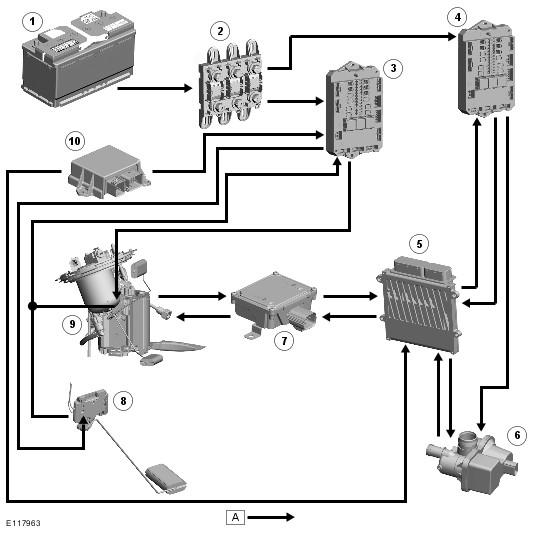

Control Diagram
WARNING: This page is about a different car, the 2010 Jaguar XF and 2009 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A
= Hardwired
| Item Number | Description |
|---|---|
| 1 | Battery |
| 2 | Megafuse (250A) |
| 3 | rear junction box (RJB) |
| 4 | central junction box (CJB). |
| 5 | engine control module (ECM) |
| 6 | DMTL Pump |
| 7 | fuel pump driver module (FPDM) |
| 8 | left-hand (LH) fuel level sensor |
| 9 | right-hand (RH) fuel level sensor and fuel pump module |
| 10 | restraints control module (RCM) |
