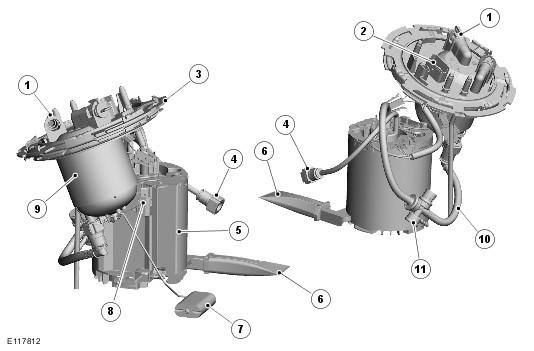

Fuel Pump Module
| Item Number | Description |
|---|---|
| 1 | Fuel supply connection |
| 2 | Electrical connector |
| 3 | Flange locking ring and seal |
| 4 | Jet pump connector from left-hand (LH) side of fuel tank |
| 5 | Fuel pump module |
| 6 | Fuel pick up filter |
| 7 | Level sensor float |
| 8 | right-hand (RH) level sensor |
| 9 | Fuel filter |
| 10 | Pump supply to flange connection |
| 11 | Pressure relief valve |
The fuel pump is a variable speed rotary vane type. The pump is energized by the fuel pump relay which is located in the rear junction box (RJB) and the fuel pump driver module (FPDM) which is located under the right-hand (RH) floor pan above the rear suspension stabilizer bar. The relay and fuel pump driver module (FPDM) are controlled by the engine control module (ECM).
A fine mesh filter is located in the lower section of the pump module. This provides filtration to the fuel as it is drawn into the module. There is a winged filter on the fuel pump that gives additional protection and a life time fuel filter integrated into the flange which eliminates the need for an additional filter further downstream in the fuel system.
The right-hand (RH) fuel level sensor is mounted into the pump module housing.
