Starter Motor (G1088988): Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Battery Disconnect and Connect (General Procedures).
  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: Air Deflector (Front End Body Panels, Removal and Installation).

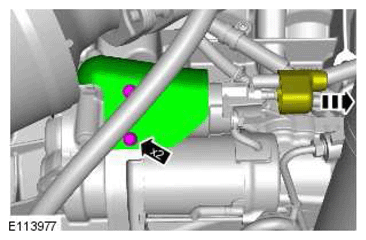

  4. G11419625

    Torque Specification: 6 Nm

  5. CAUTION: Make sure that the protective cover is correctly installed over the electrical connector.

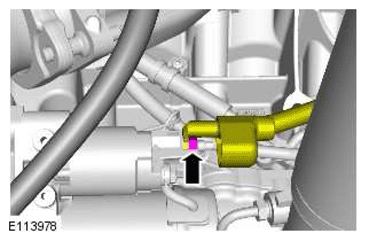

    G11419626

    Torque Specification: 12 Nm

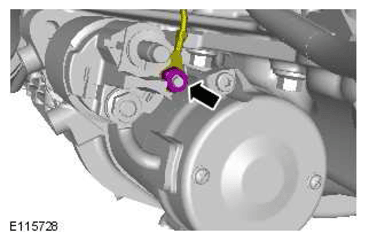

  6. G11419627

    Torque Specification: 7 Nm

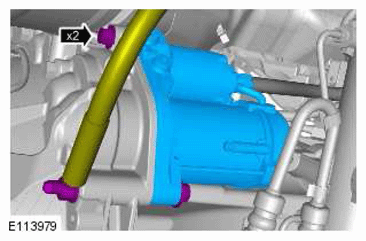

  7. G11419628

Torque Specification: 48 Nm
