Side Air Curtain Module (G1058509): Removal

NOTE: Removal steps in this procedure may contain installation details.

All vehicles

Make the air bag supplemental restraint system (SRS) safe. Refer to: Standard Workshop Practices .
Refer to: Battery Disconnect and Connect (General Procedures).
Refer to: Interior Rear View Mirror (Rear View Mirrors, Removal and Installation).
Refer to: Overhead Console (Instrument Panel and Console, Removal and Installation).
Refer to: Sun Visor (Interior Trim and Ornamentation, Removal and Installation).
Refer to: A-Pillar Trim Panel (Interior Trim and Ornamentation, Removal and Installation).
Refer to: B-Pillar Upper Trim Panel (Interior Trim and Ornamentation, Removal and Installation).
Refer to: C-Pillar Lower Trim Panel (Interior Trim and Ornamentation, Removal and Installation).

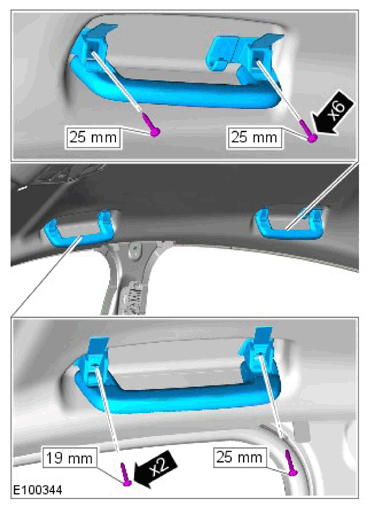

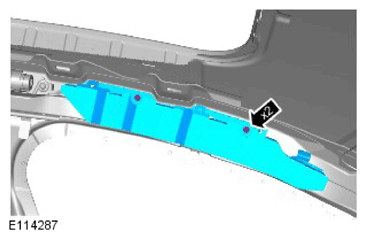

Torque Specification: 2 Nm

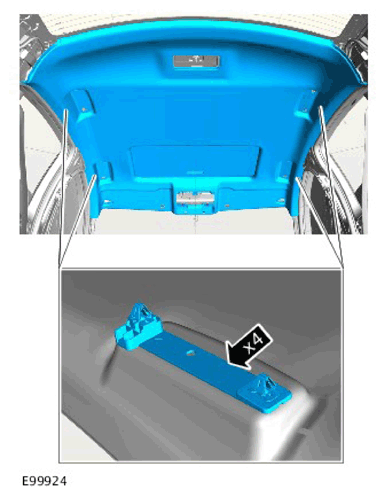

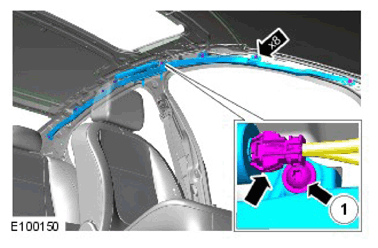

Vehicles with roof opening panel

NOTE:

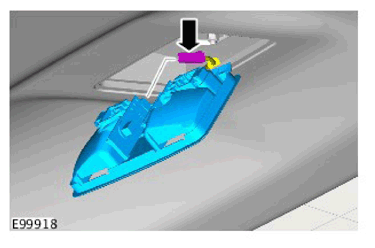

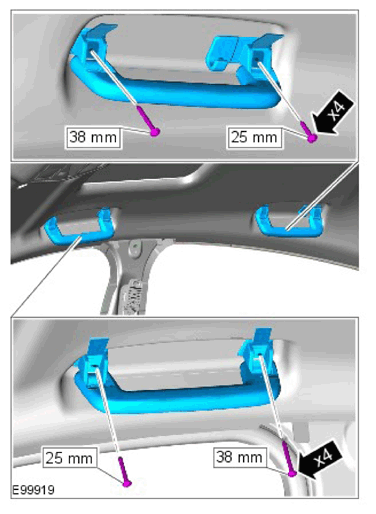

Torque Specification: 2 Nm

Vehicles without roof opening panel

NOTE:

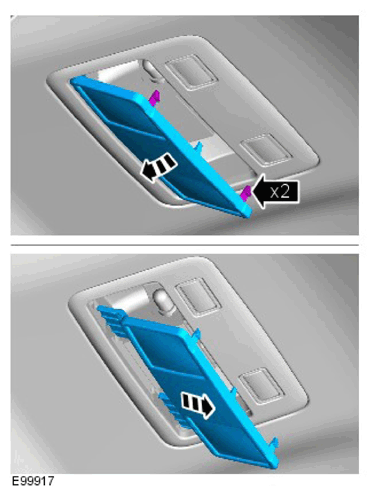

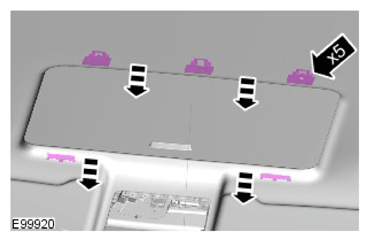

Torque Specification: 2 Nm

All vehicles

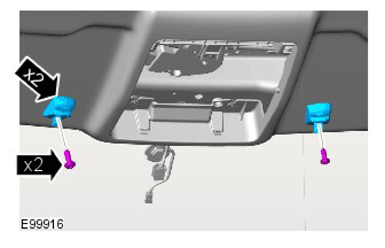

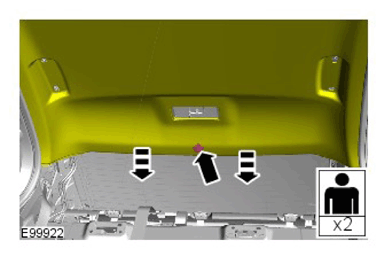

WARNING: This step requires the aid of another technician.

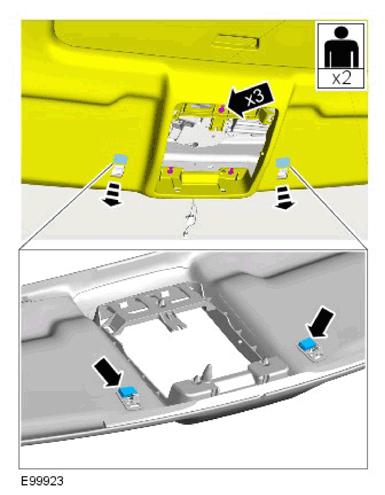

WARNING: This step requires the aid of another technician.

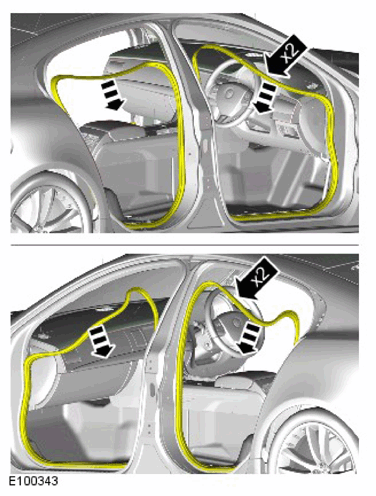

CAUTION: Note the fitted position of the component prior to removal.

NOTE: Make sure that the component is installed to the position noted on removal.
CAUTION:
- Make sure that the clips are correctly located.
- Note the fitted position of the component prior to removal.
NOTE:
- Make sure that this component is installed to the noted removal position.
- Federal vehicles only.
Torque Specification: 9 Nm

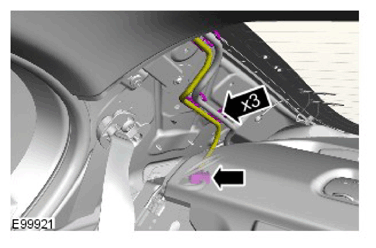

WARNING: The SRS electrical connectors are unique. DO NOT force, or attempt to connect electrical connectors to the wrong sockets.

CAUTION: Note the fitted position of the component prior to removal.

NOTE:

Make sure that the component is installed to the noted removal position.
Some variation in the illustrations may occur, but the essential information is always correct.

Torque Specification: 9 Nm
