Side Air Bag Module (G1058176): Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Make the air bag supplemental restraint system (SRS) safe. For additional information, refer to: Standard Workshop Practices .
  2. Disconnect the battery ground cable. For additional information, refer to: Battery Disconnect and Connect (General Procedures).
  3. Remove the front seat. For additional information, refer to: REMOVAL AND INSTALLATION (Front Seating).

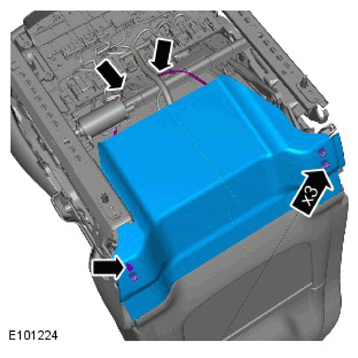

    Remove the front seat backrest lower rear cover.

  4. G11421137

    Remove the front seat hinge cover.

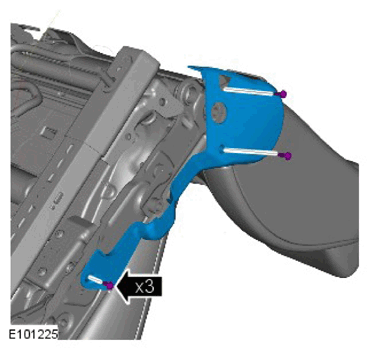

  5. G11421138

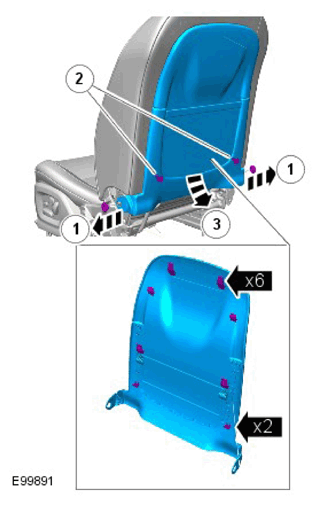

  6. G11421139

    Remove the front seat backrest cover upper trim panel.

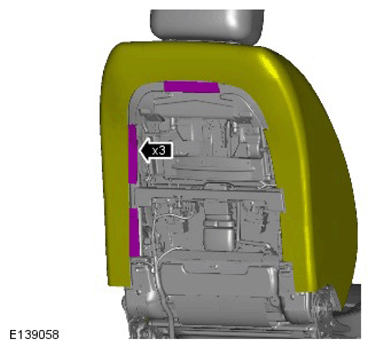

  7. G11421140

    Release the front seat backrest cover.

  8. WARNING: The SRS electrical connectors are unique. DO NOT force, or attempt to connect electrical connectors to the wrong sockets.

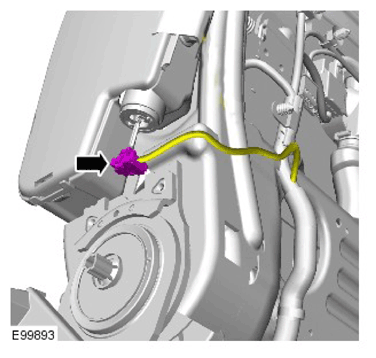

    G11421141

    Disconnect the side air bag module electrical connector.

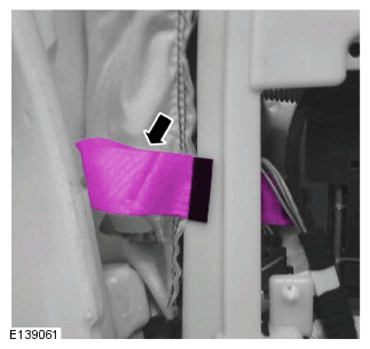

  9. G11421142

    Release the retaining strap.

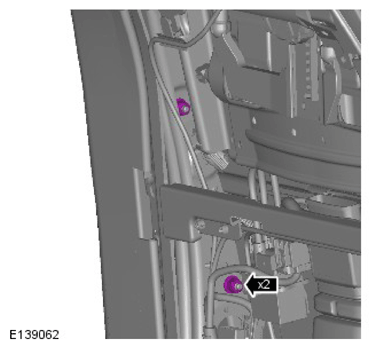

  10. G11421143

    Torque Specification: 7 Nm

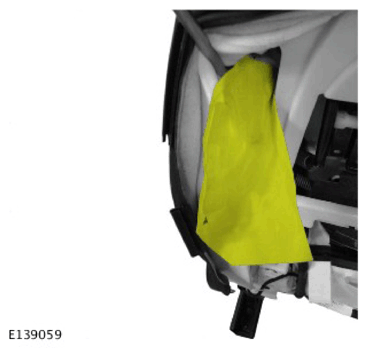

  11. G11421144

    Release the locking tab.

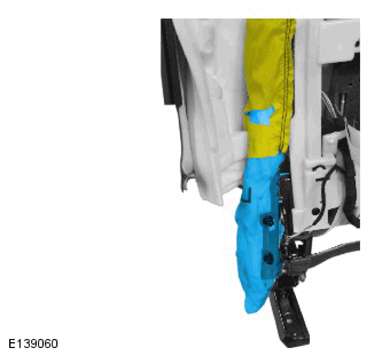

  12. G11421145

    Remove the side air bag module.
