Restraints Control Module (RCM) (G1063833): Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Make the air bag supplemental restraint system (SRS) safe.

    Refer to: Standard Workshop Practices .

  2. WARNING: To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any air bag supplementary restraints system (SRS) components. To deplete the backup power supply energy, disconnect the battery ground cable and wait for one minute. Failure to follow this instruction may result in personal injury.

    Refer to: Battery Disconnect and Connect (General Procedures).

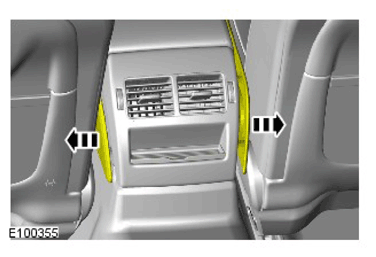

  3. G11421131

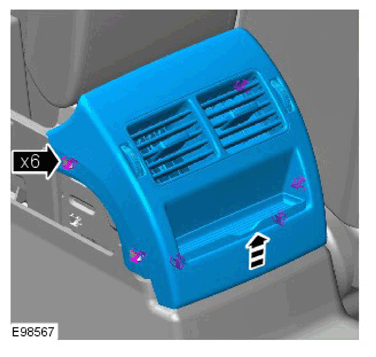

  4. G11421132

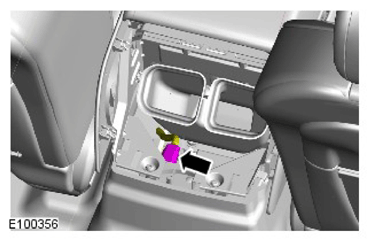

  5. G11421133

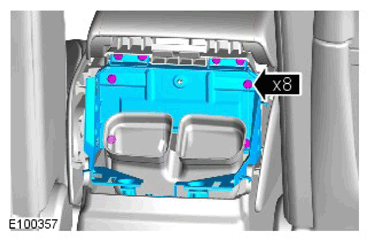

  6. G11421134

    Torque Specification: 6 Nm

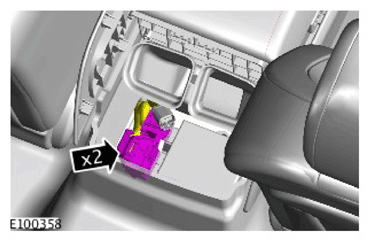

  7. G11421135
NOTE:
  • If the SRS component is to be replaced, the bar code of the new unit must be recorded.
  • The RCM will record and store impact data. The module must be replaced when three records are noted.

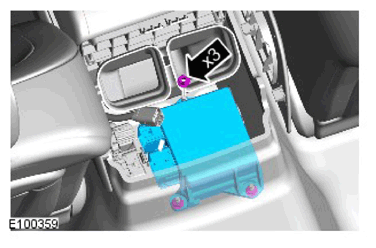

G11421136

Torque Specification: 10 Nm
