Passenger Air Bag Module (G1005905): Installation

  1. WARNING: The original air bag wiring harness, as supplied with the vehicle, must  be fitted to the new air bag module.

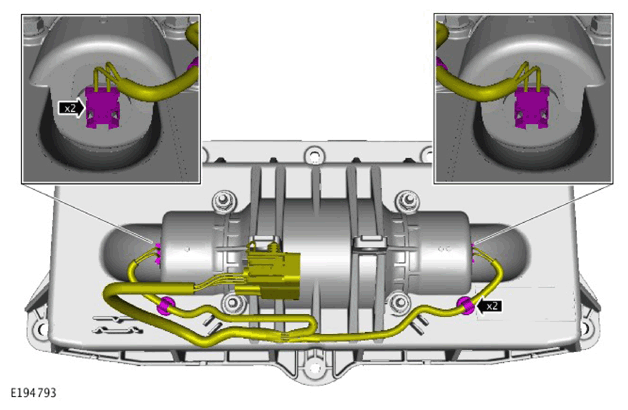

    G11421108
    • Install the air bag wiring harness.
    • Install the 2 clips.
    • Connect the 2 electrical connectors.
  2. CAUTION:
    • The attached animation must be watched before installing the air bag module.
    • Do not use excessive force on the instrument panel when removing the air bag module.

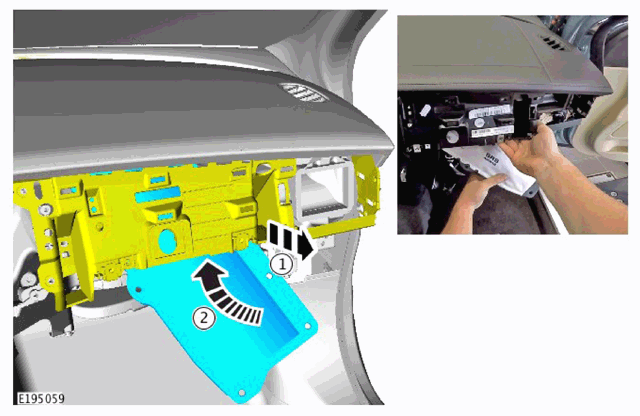

    G11421109

    Using the attached animation for reference install the passenger air bag module.

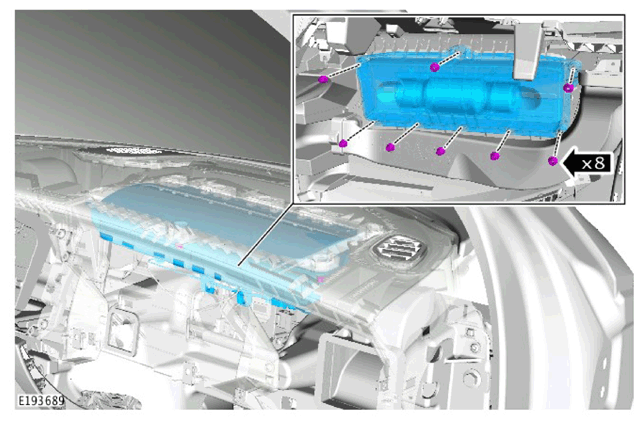

  3. G11421110

    Install the air bag module nuts.

    Torque Specification: 6 Nm

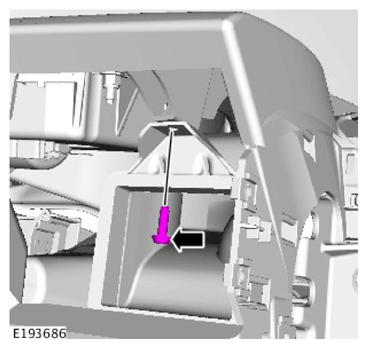

  4. G11421111

    Install the air duct front screw.

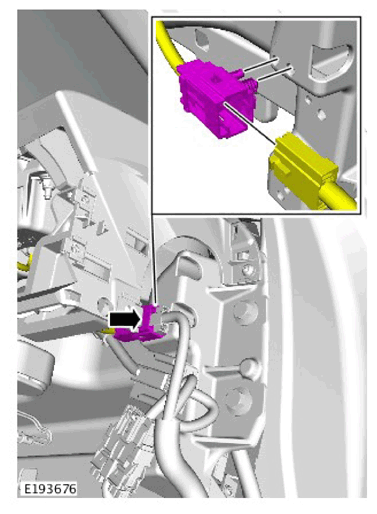

  5. G11421112

    Connect and install the air bag module electrical connector.

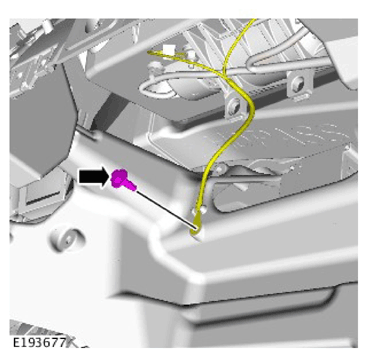

  6. G11421113

    Install the air bag module earth harness.

    Torque Specification: 9 Nm

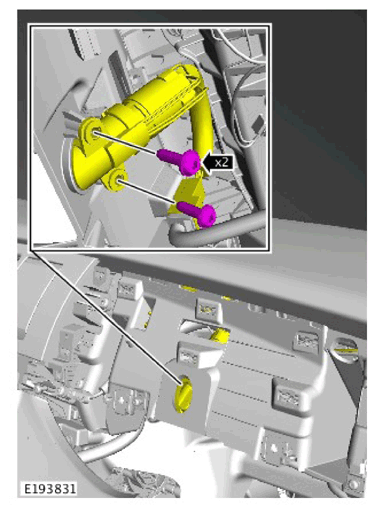

  7. G11421114

    Install the humidity sensor.

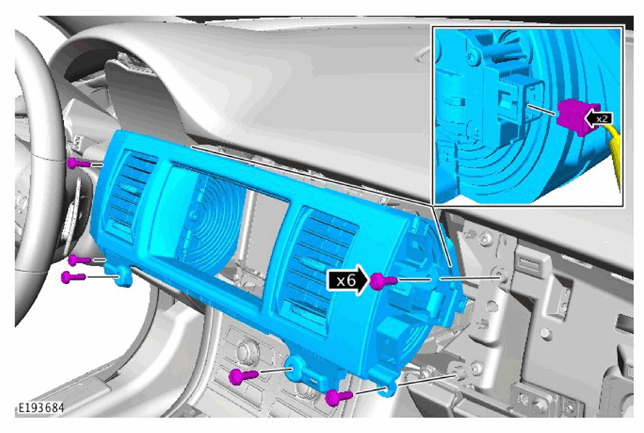

  8. G11421115
    1. Connect the 2 register electrical connectors and install the centre register.
    2. Install the 6 center register screws.

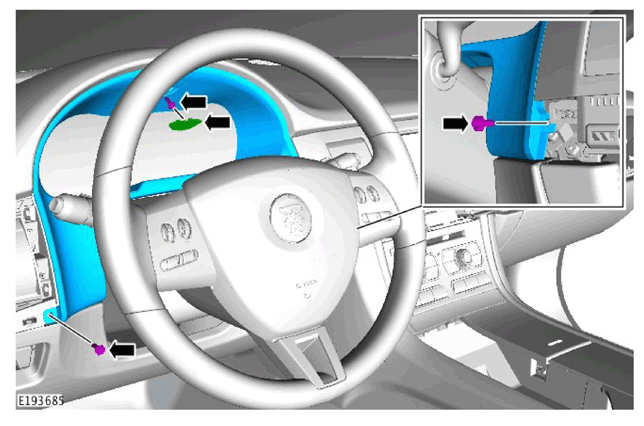

  9. G11421116
    1. Install the instrument cluster trim.
    2. Install the 3 instrument cluster trim screws.
    3. Install the protective cover to the instrument cluster.

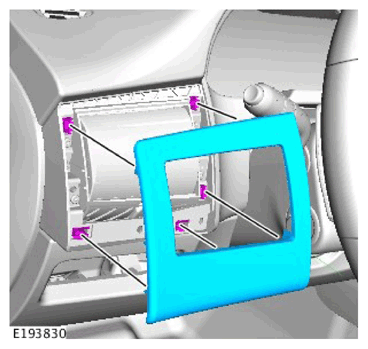

  10. G11421117

    Install the drivers side register trim.

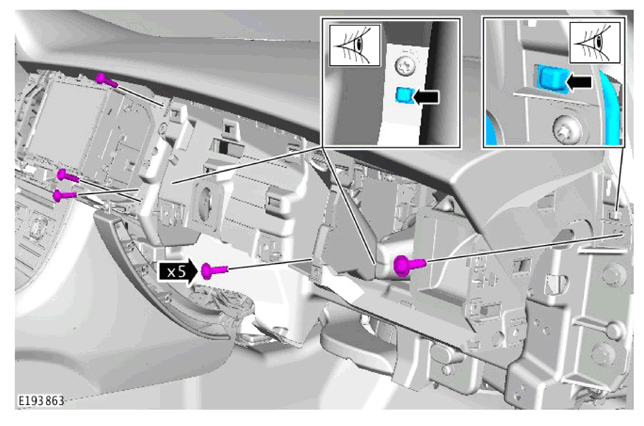

  11. CAUTION: Make sure the instrument panel is correctly aligned to the locating pegs before tightening the screws.
    G11421118

    Install the instrument panel screws.

    Torque Specification: 9 Nm

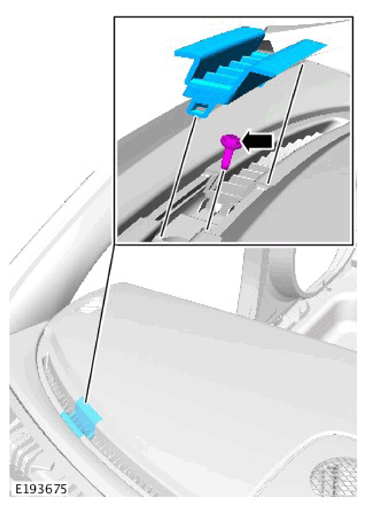

  12. G11421119
    1. Install the instrument panel rear bolt.

      Torque Specification: 9 Nm

    2. Install the instrument panel trim cover.
  13. NOTE: Make sure the A-pillar trim center clip is correctly located.

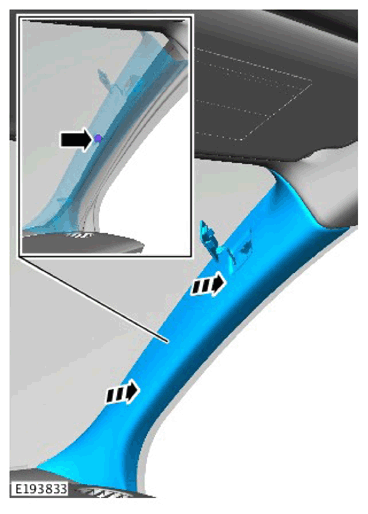

    G11421120

    Insall the A-pillar trim.

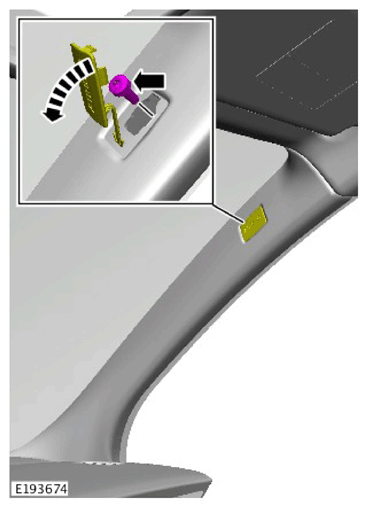

  14. G11421121

    Install the A-pillar trim bolt and cover.

    Torque Specification: 6 Nm

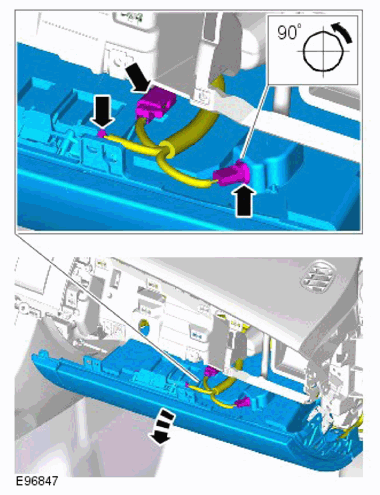

  15. NOTE: Make sure the glove compartment is supported when connecting the electircal connectors.
    G11421122
    1. Install the glove compartment assembly.
    2. Connect the 2 electrical connectors.
    3. Install the glove compartment bulb to the holder.
  16. CAUTION: Fixings must be started by hand to avoid damaging threads.

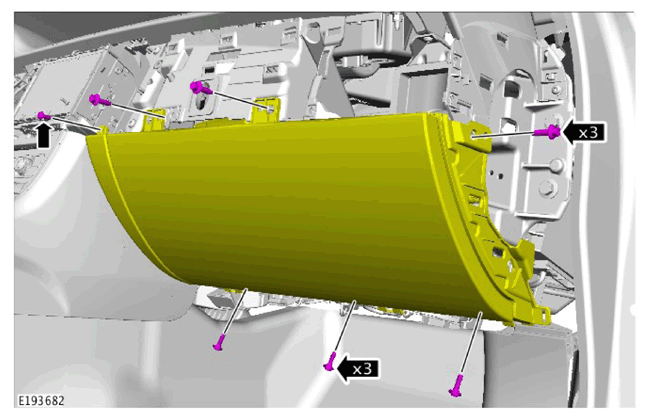

    G11421123

    Install the glove compartment bolts.

    Torque Specifications:

    M8 2.5 Nm

    T27 9 Nm

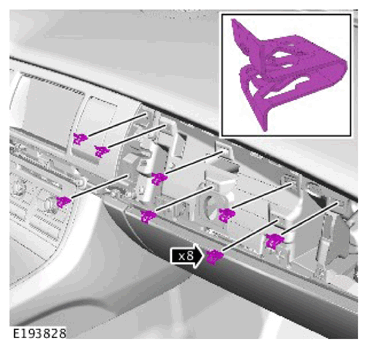

  17. G11421124

    Install the clips into the instrument panel.

  18. NOTE: Make sure the passenger fascia side clip is correctly located on the instrument panel.

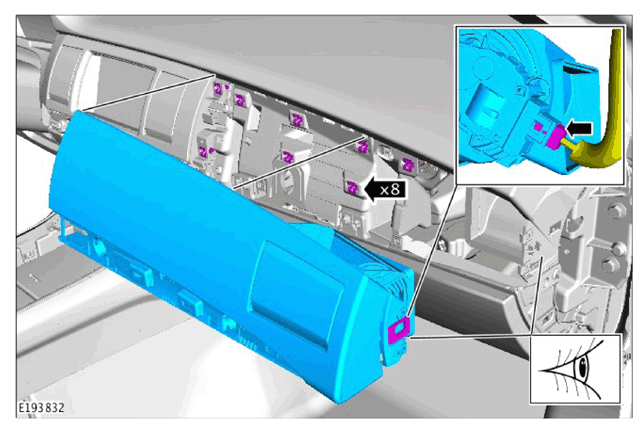

    G11421125

    Install the passenger fascia.

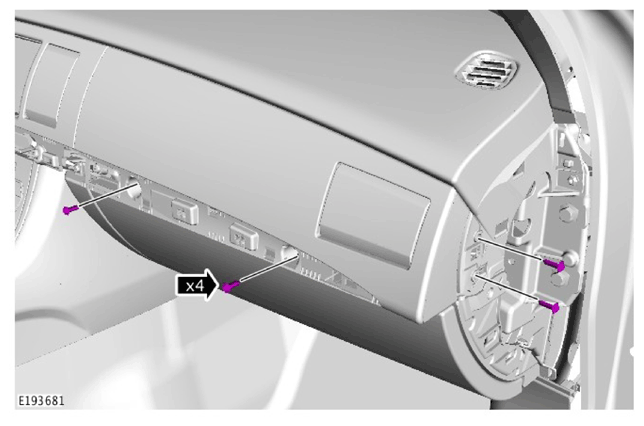

  19. G11421126

    Install the passenger fascia bolts.

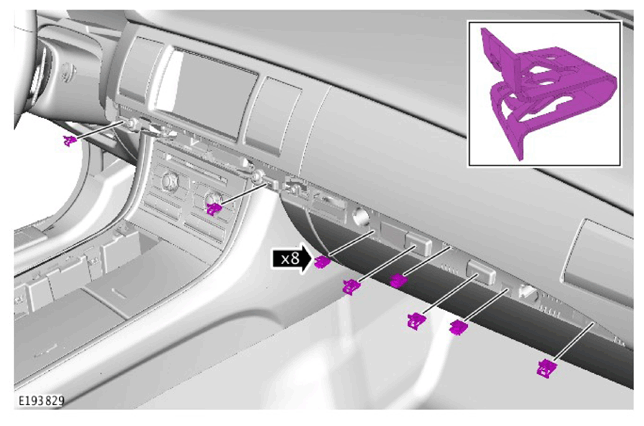

  20. G11421127

    Install the instrument panel trim finisher clips.

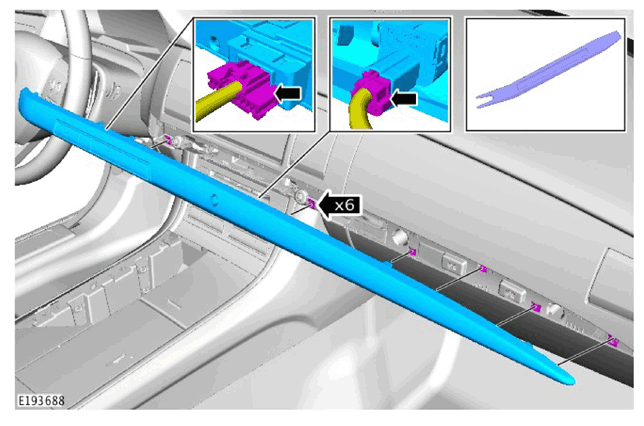

  21. G11421128

    Connect the electrical connectors and install the instrument panel trim finisher.

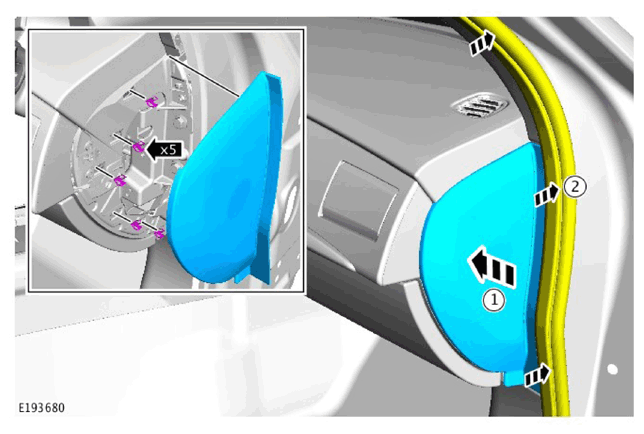

  22. G11421129
    1. Install the instrument panel end trim.
    2. Install the passenger side door seal.

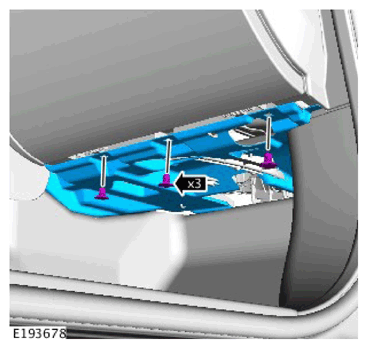

  23. G11421130

    Install the passenger footwell upper trim.

  24. Connect the battery ground cable.

    Refer to: Battery Disconnect and Connect (General Procedures).
