Occupant Classification Sensor (G1061354): Removal

CAUTION:

• The front passenger seat occupant classification sensor is available only as a service kit. No attempt should be made to replace individual components. Failure to follow this instruction may result in personal injury.
• Check for correct operation of the front seat after completion of the procedure to make sure that the wiring harness has not become trapped or stretched.

NOTE:

• Note the routing of the seat harness.
• Some variation in the illustrations may occur, but the essential information is always correct.

1. Make the air bag supplemental restraint system (SRS) safe.

   Refer to: Standard Workshop Practices .

2. Refer to: Battery Disconnect and Connect (General Procedures).
3. Refer to: Front Seat Backrest Cover (Seating, Removal and Installation).

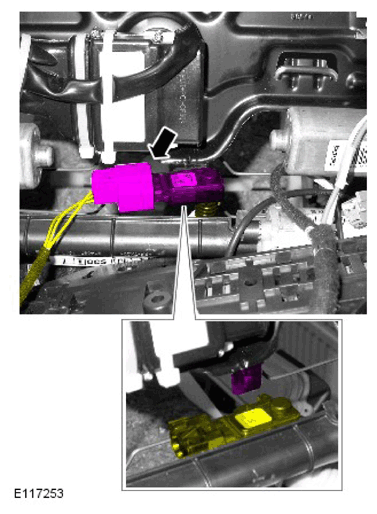

5. NOTE:

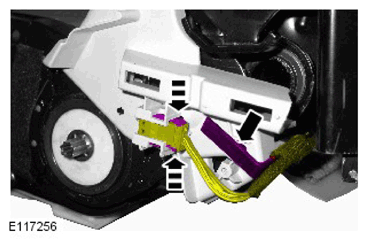

   • An audible click is heard when the clips are fully latched.

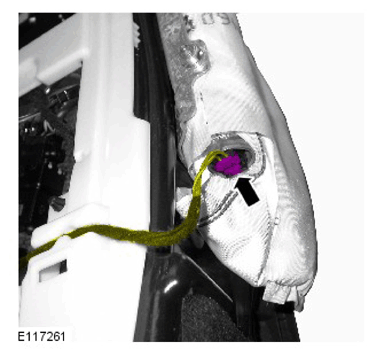

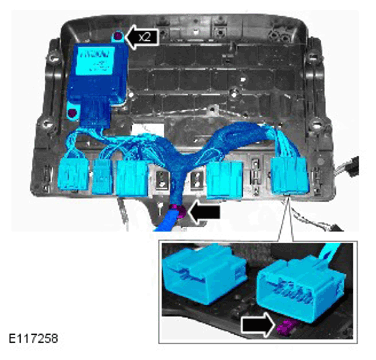

   • Make sure the electrical connector is securely connected.

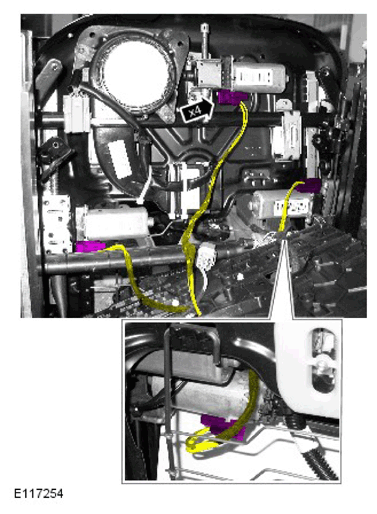

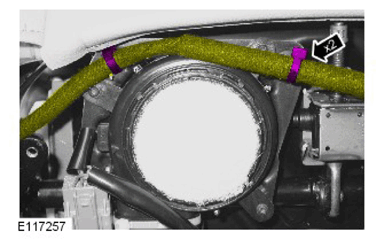

10. NOTE: Note the position of the wiring harnesses to aid installation.

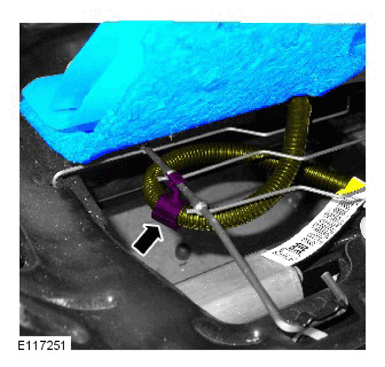

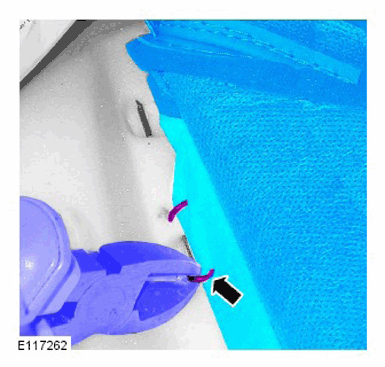

12. CAUTION: Take extra care not to damage the clips.

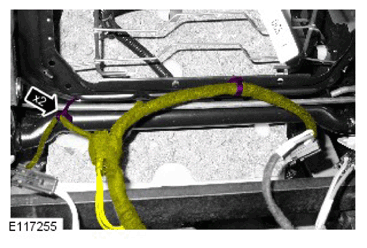

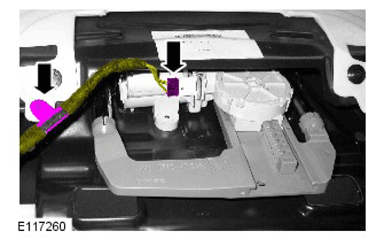

13. NOTE: Note the position of the wiring harnesses to aid installation.
19. WARNING: Do not probe supplemental restraint system (SRS) electrical connectors.
