Occupant Classification Sensor (G1061354): Installation

  1. CAUTION: The front passenger seat occupant classification sensor is available only as a service kit. No attempt should be made to replace individual components. Failure to follow this instruction may result in personal injury.

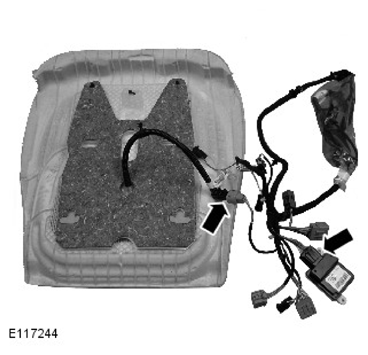

    G11421067

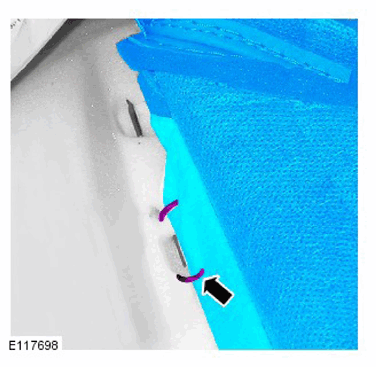

  2. NOTE:
    • Make sure that new hog rings are installed.
    • Use hog ring pliers to close the hog rings. Do not use any other tool. The hog rings must be closed to overlap as illustrated.
    G11421068

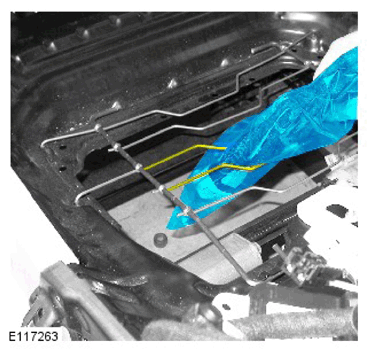

  3. G11421069

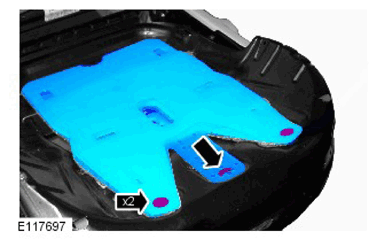

  4. G11421070

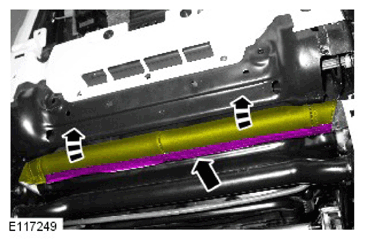

  5. G11421071

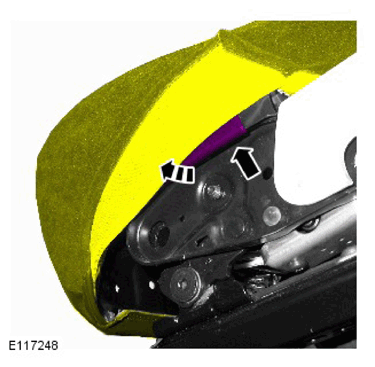

  6. G11421072

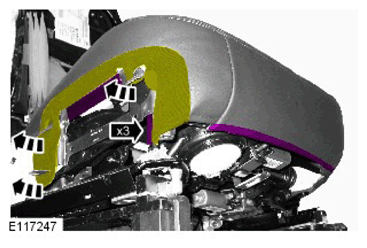

  7. G11421073
  8. NOTE: Make sure that the harness is routed to the position noted on removal.

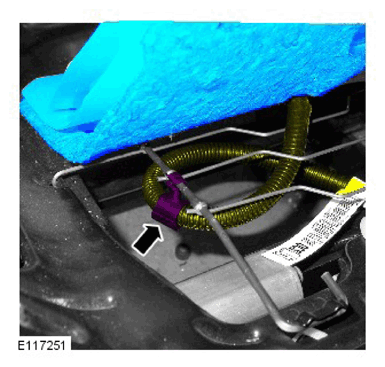

    G11421074

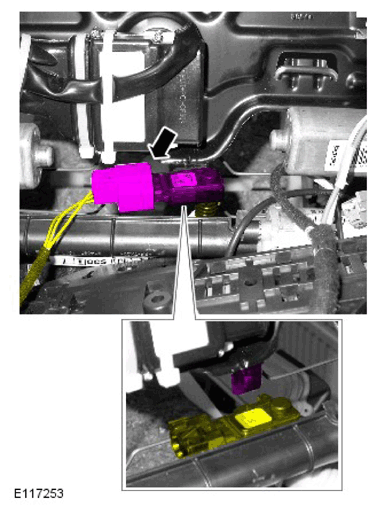

  9. G11421075

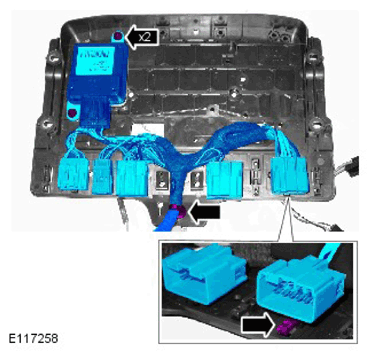

  10. G11421076

    Torque Specification: 4 Nm

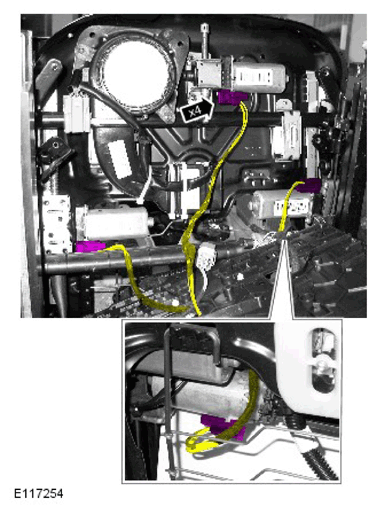

  11. NOTE: Make sure that the harness is routed to the position noted on removal.
    G11421077

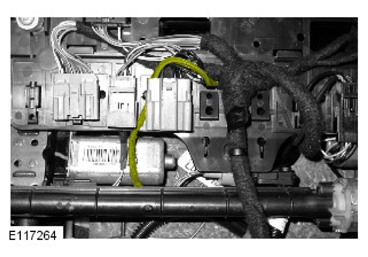

  12. CAUTION: Make sure that the wiring harness is routed above the drive bar as shown, to avoid damage to the wiring harness during movement of the front seat.
    G11421078
  13. NOTE:
    • An audible click is heard when the clips are fully latched.
    • Make sure the electrical connector is securely connected.

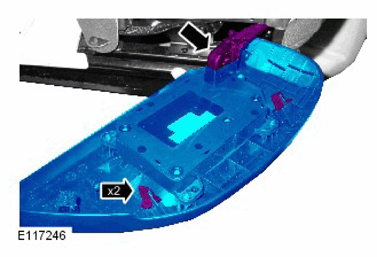

    G11421079

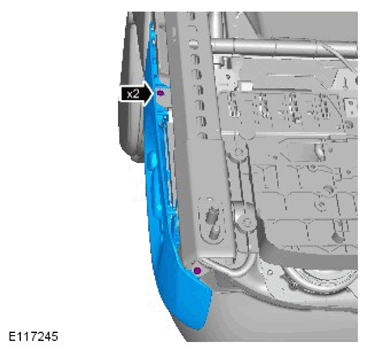

  14. G11421080

    Torque Specification: 1.3 Nm

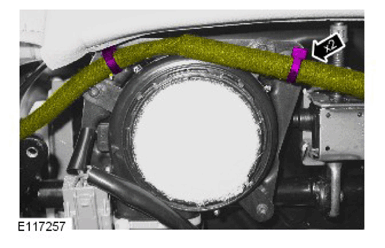

  15. G11421081

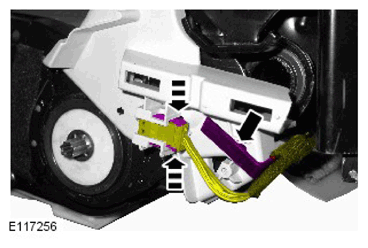

  16. G11421082

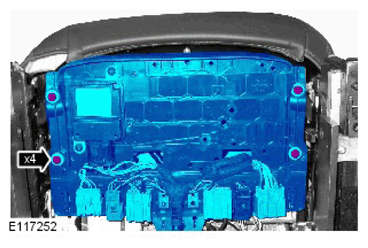

  17. G11421083

    Torque Specification: 9 Nm

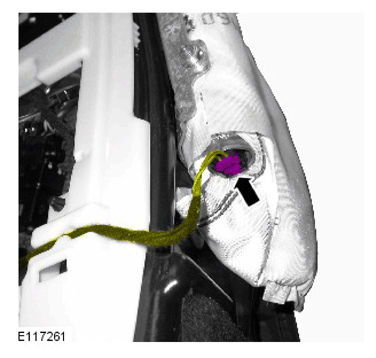

  18. WARNING: Do not probe supplemental restraint system (SRS) electrical connectors.
    G11421084

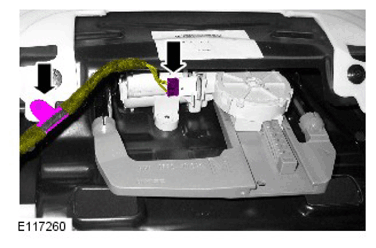

  19. G11421085
  20. G11421086
  21. Refer to: Front Seat Backrest Cover (Seating, Installation).
  22. Refer to: Battery Disconnect and Connect (General Procedures).
