Driver Air Bag Module (G1005904): Removal
WARNING:
Refer to: Supplemental Restraint System (SRS) Health and Safety Precautions
.
NOTE:
Removal steps in this procedure may contain installation details.
- Refer to: Battery Disconnect and Connect (General Procedures).
-
NOTE:

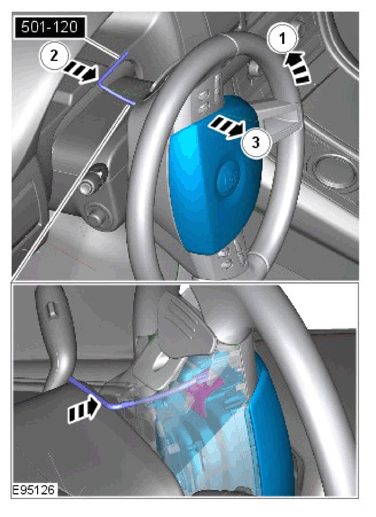

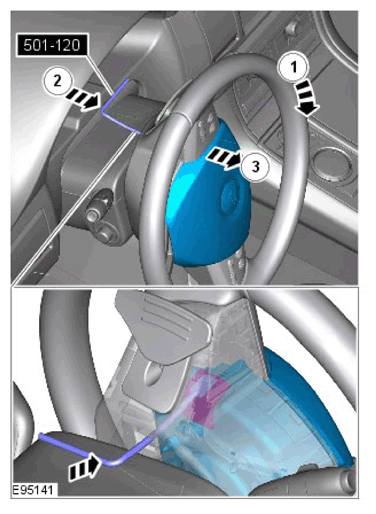

- Gentle pressure applied to the air bag towards the instrument panel aids release.

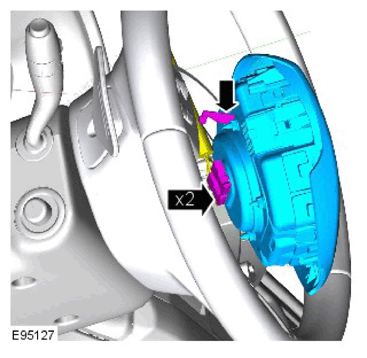

- Driver air bag module installation can be confirmed by hearing 2 audible clicks, 1 for each clip.
Special Tool(s): 501-120
