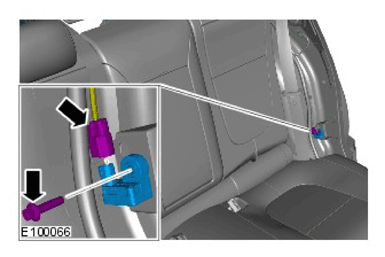

C-Pillar Side Impact Sensor (G1058219): Removal

1. Make the air bag supplemental restraint system (SRS) safe. Refer to: Standard Workshop Practices .
2. WARNING: To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any air bag supplementary restraints system (SRS) components. To deplete the backup power supply energy, disconnect the battery ground cable and wait for one minute. Failure to follow this instruction may result in personal injury.

   Refer to: Battery Disconnect and Connect (General Procedures).

3. Refer to: Rear Seat Bolster (Seating, Removal and Installation).

Torque Specification: 12 Nm
