Air Bag And Safety Belt PRETENSIONER Supplemental Restraint System (SRS) - System Operation And Component Description (G1520749): PRETENSIONERS

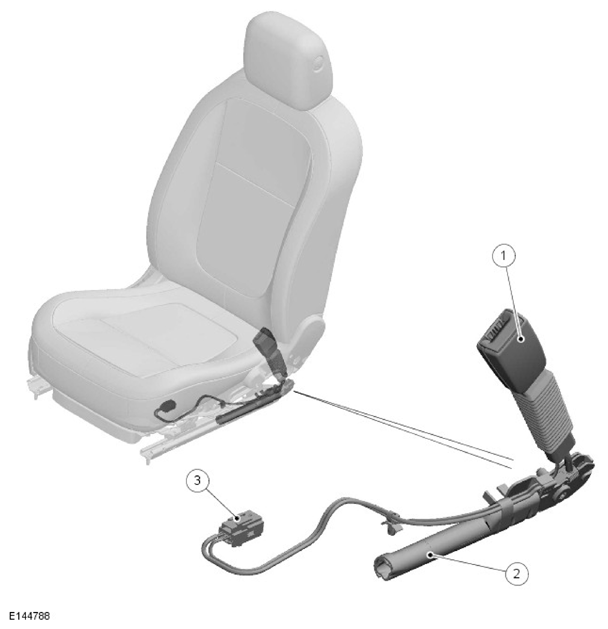

The pretensioners are used to tighten the front safety belts during a collision to ensure the occupants are securely held in their seats. A pretensioner is integrated into each front safety belt buckle and attached to a bracket on the inboard side of the seat.

Each pretensioner has a tube containing propellant and a piston. The piston is attached to a steel cable, the opposite end of which is attached to the safety belt buckle. A squib in the base of the tube provides an ignition source when triggered by a fire signal from the RCM.

On receipt of a fire signal from the RCM, the squib ignites the propellant. The propellant produces nitrogen gas that rapidly expands to drive the piston along the tube, pulling the cable and drawing the buckle downwards.
