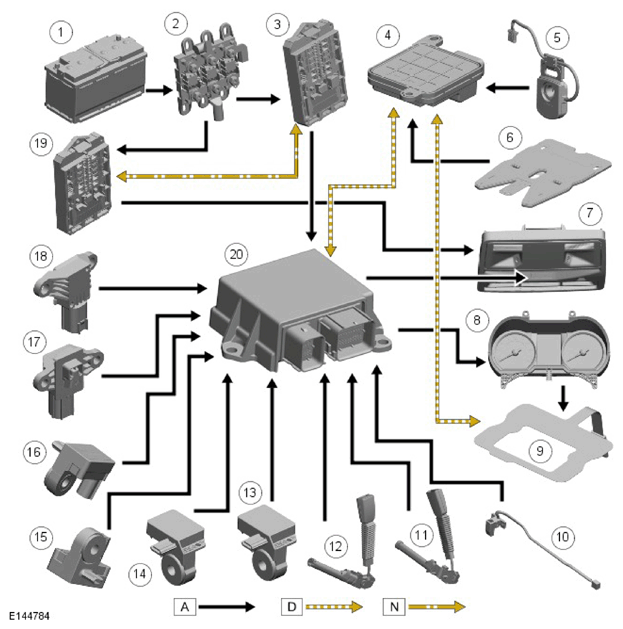

Control Diagram
NOTE:
A
= Hardwired; D
= High speed CAN bus; N
= Medium speed CAN bus
| ITEM |
DESCRIPTION |
| 1 |
Battery |
| 2 |
Battery Junction Box (BJB) |
| 3 |
Rear Junction Box (RJB) |
| 4 |
Occupant Classification Sensor Control Module (OCSCM) |
| 5 |
Safety belt tension sensor |
| 6 |
Occupant classification system pressure pad |
| 7 |
Occupant detection system Light Emitting Diode (LED) |
| 8 |
Instrument Cluster (IC) |
| 9 |
Occupant detection system pad |
| 10 |
Driver seat position sensor |
| 11 |
Passenger Safety Belt Pretensioner (PSBP) |
| 12 |
Driver Safety Belt Pretensioner (DSBP) |
| 13 |
Front left impact sensor |
| 14 |
Front right impact sensor |
| 15 |
Rear right side impact sensor |
| 16 |
Right side impact sensor |
| 17 |
Rear left side impact sensor |
| 18 |
Left side impact sensor |
| 19 |
Central Junction Box (CJB) |
| 20 |
Restraints Control Module (RCM) |

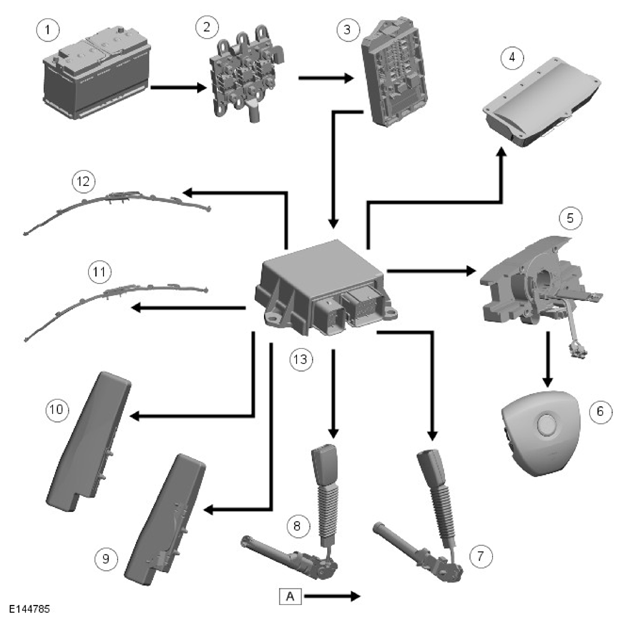

| ITEM |
DESCRIPTION |
| 1 |
Battery |
| 2 |
Battery Junction Box (BJB) |
| 3 |
Rear Junction Box (RJB) |
| 4 |
Passenger airbag |
| 5 |
Clockspring |
| 6 |
Driver airbag |
| 7 |
Passenger seat safety belt switch |
| 8 |
Driver seat safety belt switch |
| 9 |
Left side air curtain |
| 10 |
Driver side airbag |
| 11 |
Passenger side airbag |
| 12 |
Right side air curtain |
| 13 |
Restraints Control Module (RCM) |
