Airbag Warning Indicator

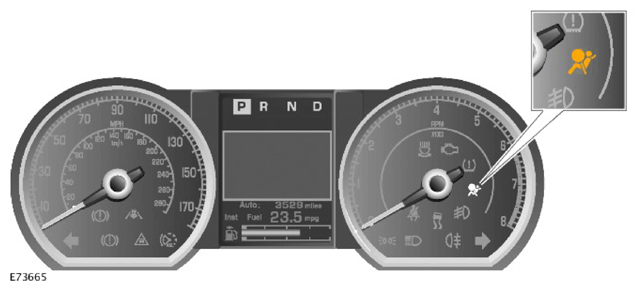

G11421029

The air bag warning indicator consists of a red Light Emitting Diode (LED) behind a SRS graphic in the instrument cluster.

Operation of the air bag warning indicator is controlled by a high speed CAN bus message from the RCM to the instrument cluster. The RCM sends the signal to illuminate the air bag warning indicator if a fault is detected, and for approximately 6 seconds during the bulb check at the beginning of each ignition cycle.
