Engine Performance
>>
Mode 6 - XF, XJ & XK
>>
2010-11 XF, XJ & XK
2010-11 XF, XJ & XK

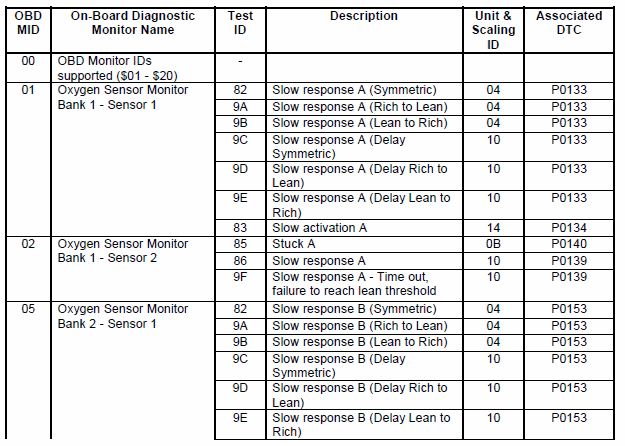

Fig 1: Mode 6 Data (1 Of 4)
Courtesy of JAGUAR CARS, INC.

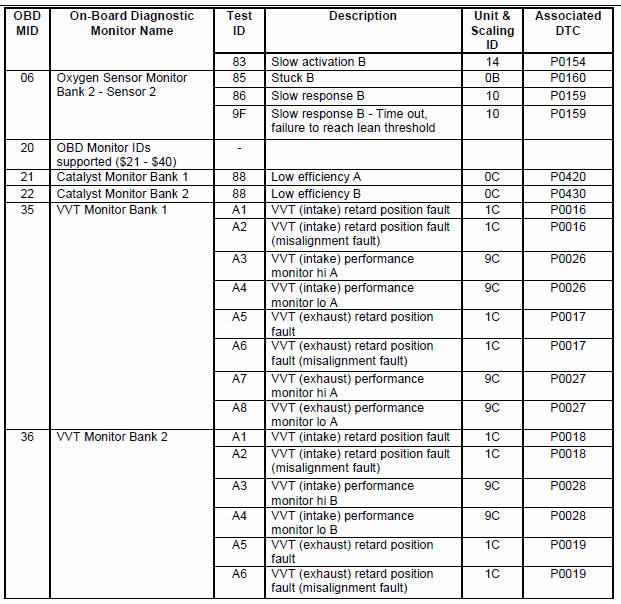

Fig 2: Mode 6 Data (2 Of 4)
Courtesy of JAGUAR CARS, INC.

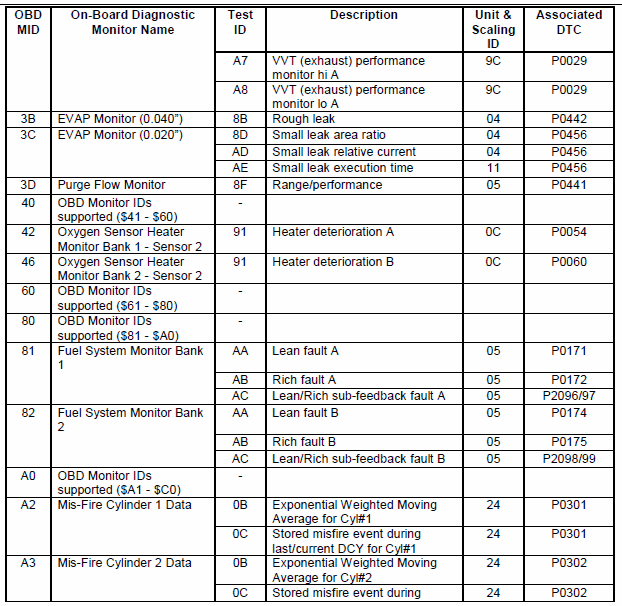

Fig 3: Mode 6 Data (3 Of 4)
Courtesy of JAGUAR CARS, INC.

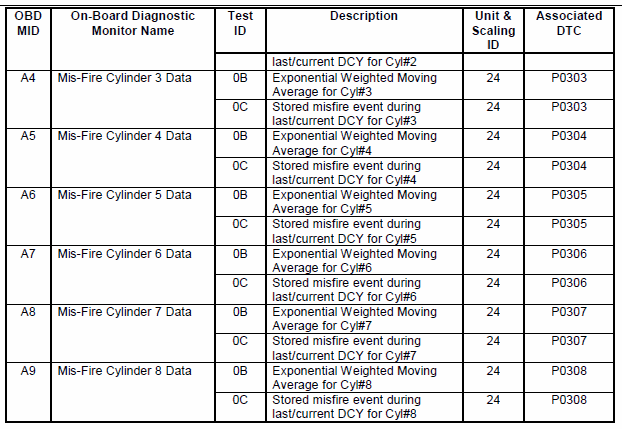

Fig 4: Mode 6 Data (4 Of 4)
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
