2008-09 XF, 2006-09 XJ & 2007-09 XK

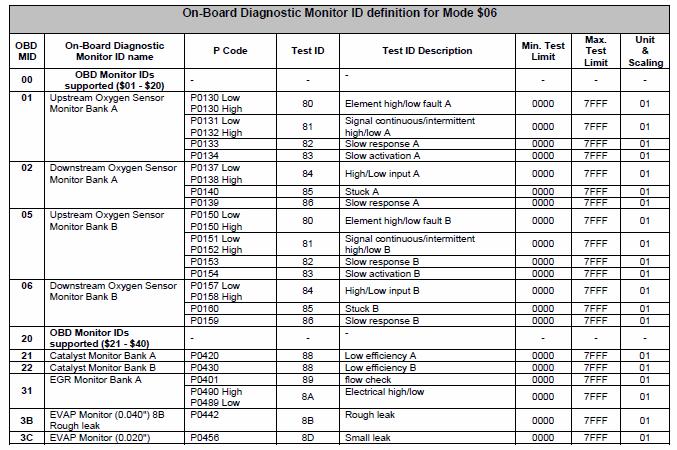

Fig 1: Mode 6 Data (1 Of 3)

G00517141

Courtesy of JAGUAR CARS, INC.

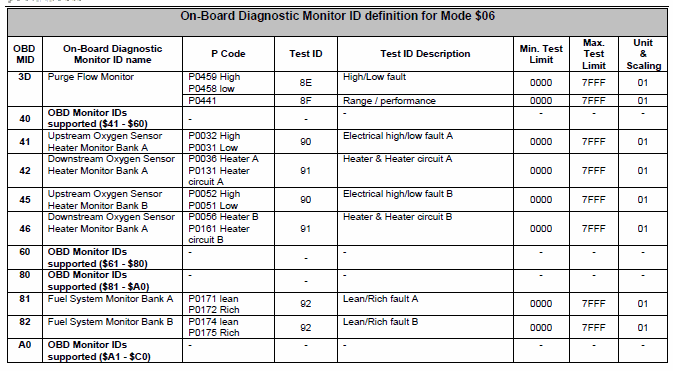

Fig 2: Mode 6 Data (2 Of 3)

G00517142

Courtesy of JAGUAR CARS, INC.

Fig 3: Mode 6 Data (3 Of 3)

G00517143

Courtesy of JAGUAR CARS, INC.
