Ignition Coil-On-Plug (G1085794): Removal

NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  1. Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).
  2. Refer to: Engine Cover - V8 S/C 5.0L Petrol (Interior Trim and Ornamentation, Removal and Installation).
  3. Refer to: Secondary Bulkhead Right Panel - TDV6 3.0L Diesel/V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol (Front End Body Panels, Removal and Installation).
  4. CAUTION:
    • Be prepared to collect escaping coolant.
    • Make sure that all openings are sealed. Use new blanking caps.

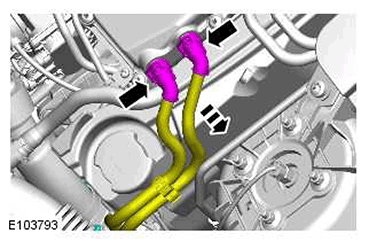

    G11416494

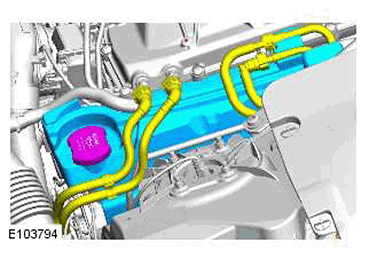

  5. G11416495

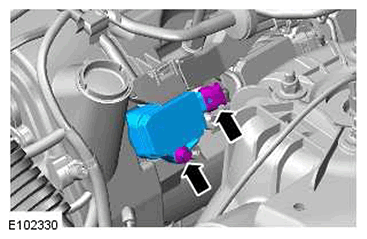

  6. G11416496

    Torque Specification: 7 Nm
