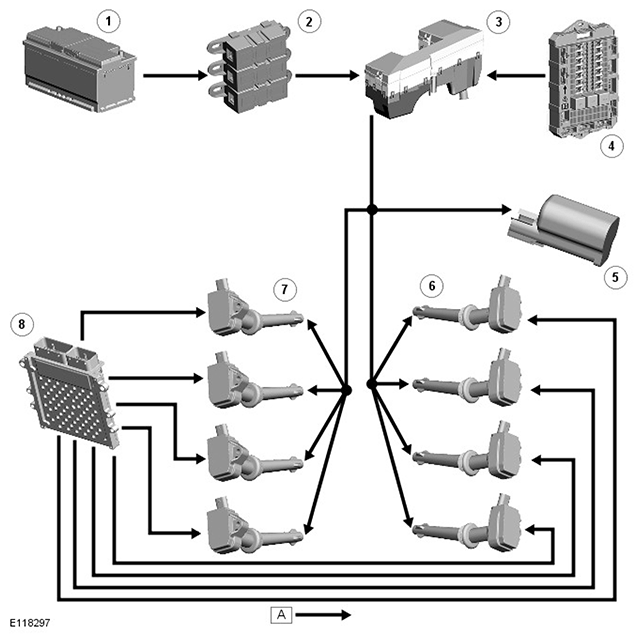

| 1 |
Battery |
| 2 |
BJB (battery junction box) (250 A megafuse) |
| 3 |
EJB (engine junction box (ignition relay)) |
| 4 |
CJB (central junction box) |
| 5 |
RFI suppressor |
| 6 |
LH (left hand) cylinder bank ignition coil (4 off) |
| 7 |
RH (right hand) cylinder bank ignition coil (4 off) |
| 8 |
ECM |
