Camshaft Bearing Journal Diameter (G61234)

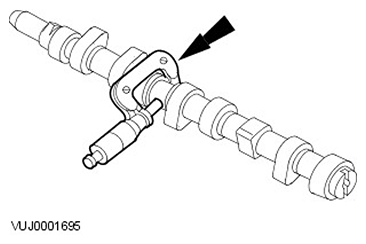

  1. G11414468

    Determine the diameter of the camshaft journals.

    Using a micrometer measure the diameter at 90 degrees intervals to determine if the journals are out-of-round.

    Measure at two different points on the journal to determine if there is any tapering.

    If the measurements are out of the specified range, install a new camshaft.
