Instrument Cluster Lens (G1535491): Removal

  1. Fully extend the steering column for access.
  2. Disconnect the battery ground cable.

    Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).

  3. Refer to: Instrument Cluster  (Instrument Cluster, Removal and Installation).
  4. CAUTION: To prevent static damage to the circuits, place the instrument cluster inside the electro static discharge bag and use the gloves provided during this procedure.

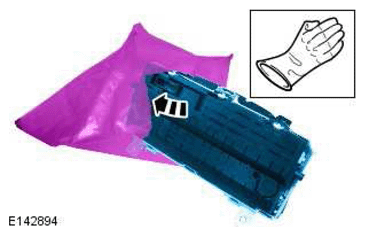

    G11424585

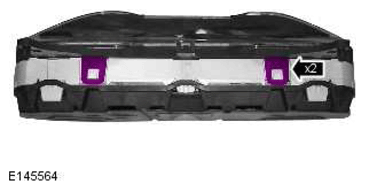

  5. G11424586

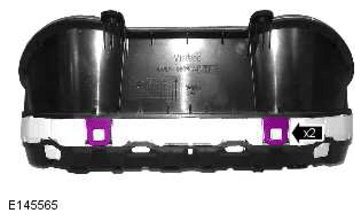

  6. G11424587
  7. CAUTION: Take care not to damage the dials.

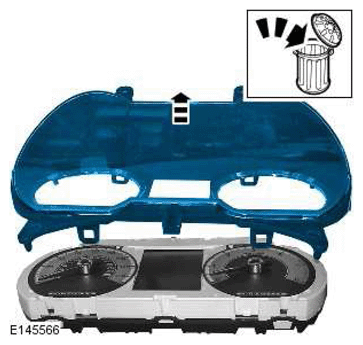

    G11424588
