Instrument Cluster Lens (G1535491): Installation

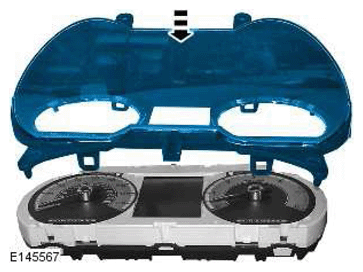

  1. NOTE: Take care not to leave finger prints inside the new lens.
    G11424589
  2. Refer to: Instrument Cluster  (Instrument Cluster, Removal and Installation).
  3. Disconnect the battery ground cable.

    Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).
