Instrument Cluster (G1005950): Removal

CAUTION: If a new instrument cluster is to be installed, the diagnostic tool must be connected prior to removal, the data must then be downloaded from it and the keys (remote control handsets) set into default mode. Failure to follow this instruction will result in permanent damage to the keys.
NOTE:
  • If a new instrument cluster is to be installed, make sure that all keys (remote control handsets) are present.
  • Removal steps in this procedure may contain installation details.
  1. Fully extend and lower the steering column for access.
  2. Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).

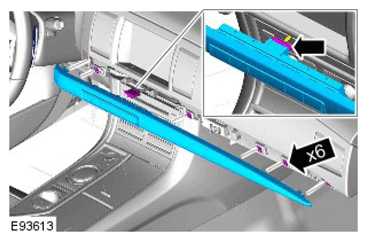

  3. G11424579

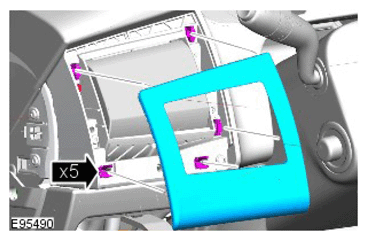

  4. G11424580

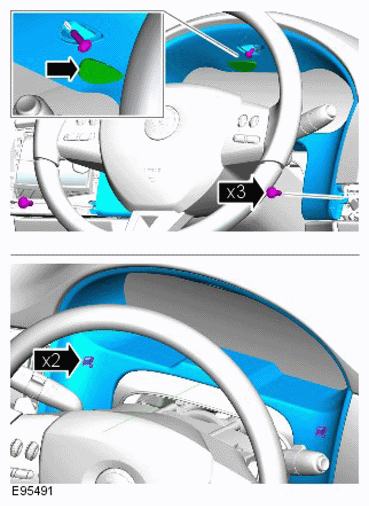

  5. G11424581

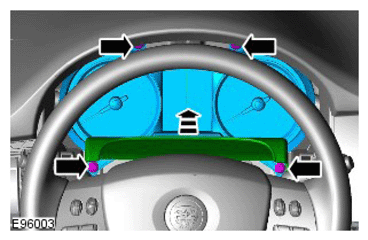

  6. G11424582

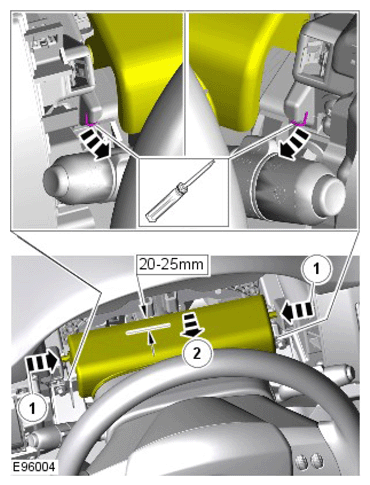

  7. G11424583

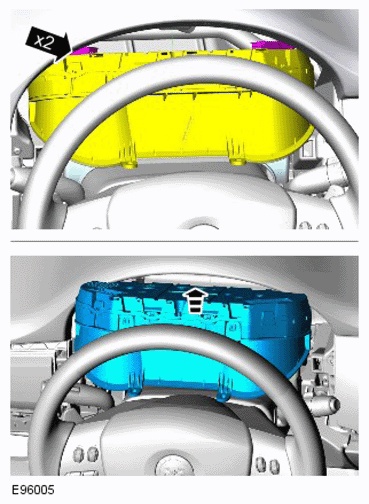

  8. CAUTION: Take extra care not to damage the instrument cluster face.
    G11424584
