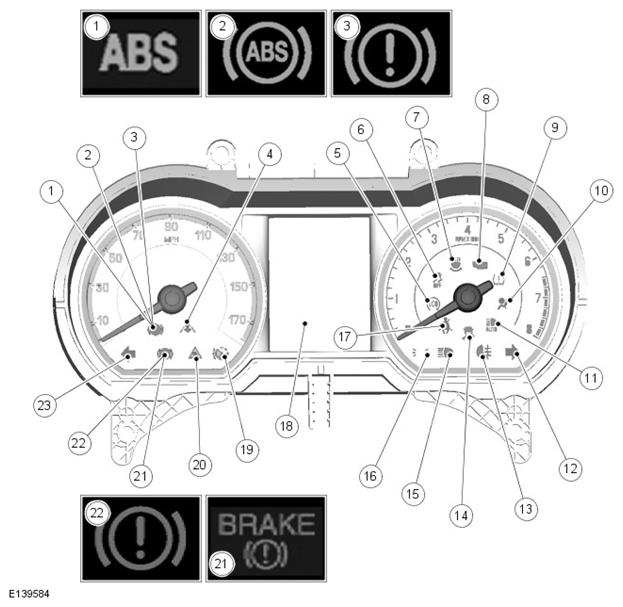

Instrument Cluster - Warning Indicator Locations
| ITEM | DESCRIPTION |
|---|---|
| 1 | ABS warning indicator (amber, USA only) |
| 2 | ABS warning indicator (amber, Canada and Mexico only) |
| 3 | ABS warning indicator (amber, all except USA, Canada and Mexico) |
| 4 | Adaptive speed control |
| 5 | ECO Stop/start |
| 6 | Dynamic Stability Control (DSC) off |
| 7 | Adaptive front lighting system |
| 8 | MIL |
| 9 | Tire Pressure Monitoring System (TPMS) |
| 10 | Airbag warning |
| 11 | Auto high beam |
| 12 | RH turn signal |
| 13 | Rear fog lamps |
| 14 | Dynamic Stability Control (DSC) warning/operation |
| 15 | High beam |
| 16 | Side lamps |
| 17 | Seat belt warning |
| 18 | Message center |
| 19 | Automatic Speed Limiter (ASL) |
| 20 | Forward alert |
| 21 | Brake warning indicator (USA only) |
| 22 | Brake warning indicator (all except USA) |
| 23 | LH turn signal |
Refer to: Glow Plug System (303-07C, Description and Operation).
The warning indicators are located in various positions in the instrument cluster. The indicators can be split into two groups; instrument cluster controlled and externally controlled.
Instrument cluster controlled warning indicators are dependent on software logic within the instrument cluster for activation. The cluster software controls the indicator illumination check at ignition on (power mode 6).
Externally controlled indicators are supplied with current from another vehicle system control module or illuminated by the instrument cluster software on receipt of a bus message from another vehicle sub-system. The indicator illumination check at ignition on (powermode 6) is also controlled by the sub-system module for these indicators.
