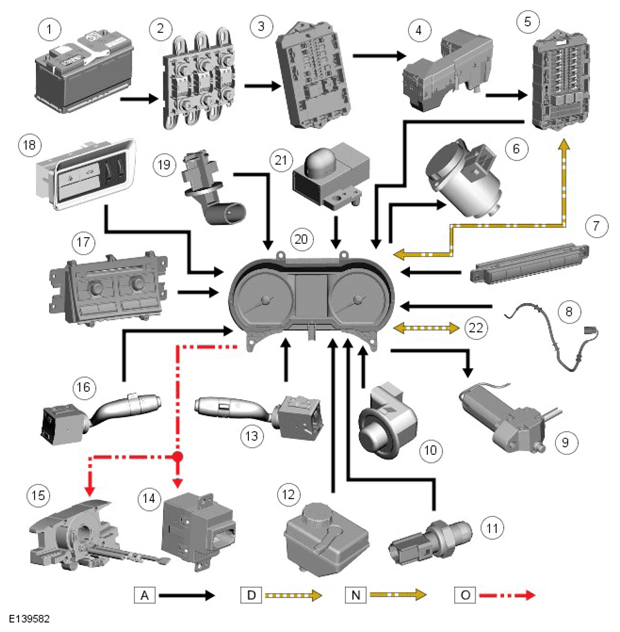

Control Diagram
NOTE:
A
= Hardwired; D
= High speed CAN (controller area network) bus; N
= Medium speed CAN bus; O
= LIN (local interconnect network) bus
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery |
| 2 | BJB (battery junction box) |
| 3 | RJB (rear junction box) |
| 4 | EJB (engine junction box) |
| 5 | CJB (central junction box) |
| 6 | Servotronic valve |
| 7 | Integrated Control Panel (ICP) switch pack |
| 8 | Front brake pad wear sensors |
| 9 | Steering column motor |
| 10 | Steering column adjustment switch |
| 11 | Engine oil pressure switch |
| 12 | Brake fluid level switch |
| 13 | LH (left-hand) steering column multifunction switch |
| 14 | Start control module |
| 15 | Clockspring |
| 16 | RH (right-hand) steering column multifunction switch |
| 17 | Integrated Control Panel (ICP) |
| 18 | Auxiliary lighting switch |
| 19 | Engine coolant level sensor |
| 20 | Instrument cluster |
| 21 | Sun load sensor |
| 22 | High speed CAN bus connection to other vehicle systems |
