Differential Locking Motor (G1306672): Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Differential Draining and Filling - GTDi 2.0L Petrol/V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol  (General Procedures).

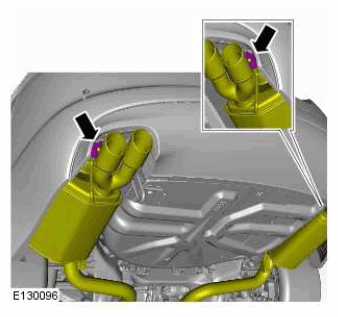

  2. G11420725

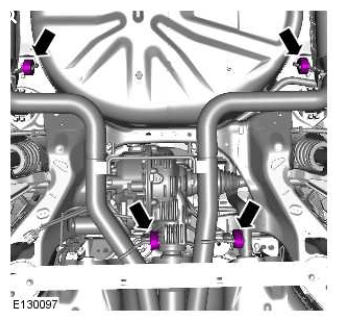

  3. G11420726

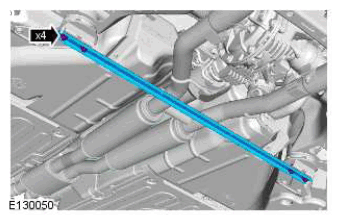

  4. G11420727
  5. CAUTION: Make sure that the exhaust system is supported with a suitable transmission stand.

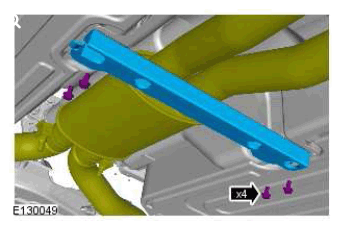

    G11420728

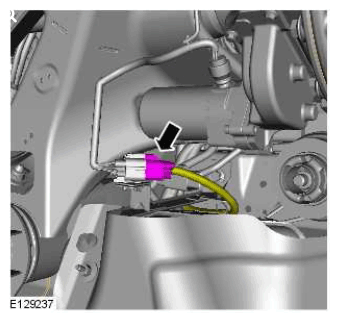

  6. G11420729

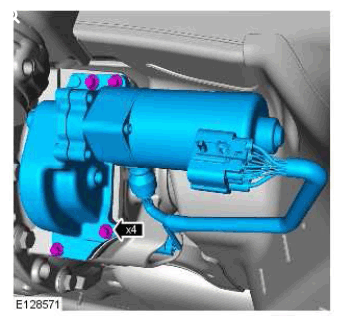

  7. G11420730

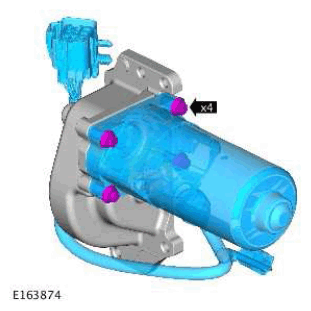

  8. G11420731
