Differential Locking Motor (G1306672): Installation

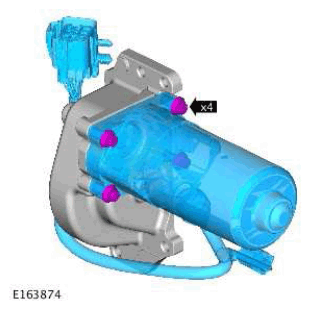

  1. G11420732

    Torque Specification: 11 Nm

  2. CAUTION:
    • Make sure that the mating faces are clean and free of foreign material.
    • Apply a continuous bead of silicone gasket sealant (Loctite 5999) as shown on the illustration. The application of the sealant must be 4mm diameter. Install the component immediately after applying the sealant without smearing the sealant.
    NOTE: New units must be configured using the Programmable Module Installation Routine in the diagnostic tool.

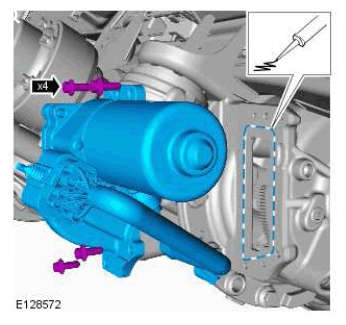

    G11420733
    • Torque Specification: 11 Nm
    • Apply a suitable amount of approved sealant to one of the mating faces.

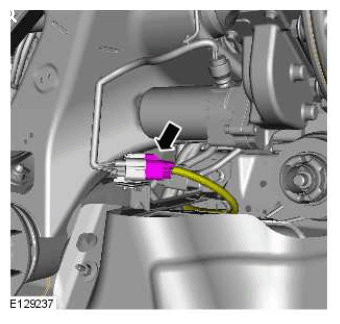

  3. G11420734

  4. Refer to: Differential Draining and Filling - GTDi 2.0L Petrol/V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol  (General Procedures).

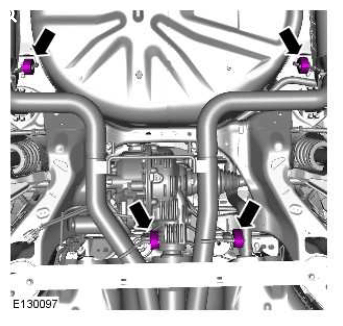

  5. G11420735

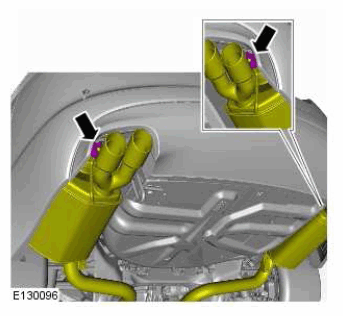

  6. G11420736

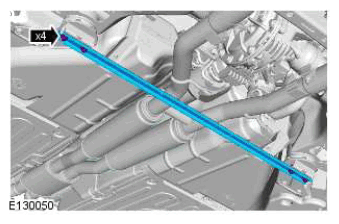

  7. G11420737

    Torque Specification: 62 Nm

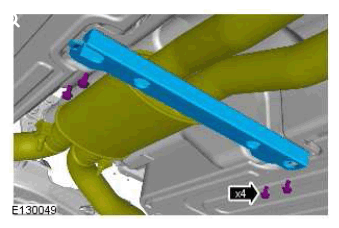

  8. G11420738

    Torque Specification: 25 Nm
