Differential Front Bushing - GTDI 2.0L Petrol/V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol (G1086734): Removal

  1. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  2. Refer to: Differential Case - Gtdi 2.0L Petrol/V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol (G1086733)  (Removal and Installation).

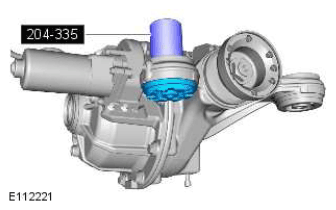

  3. G11420722

    Special Tool(s):  204-335
