Differential Front Bushing - GTDI 2.0L Petrol/V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol (G1086734): Installation

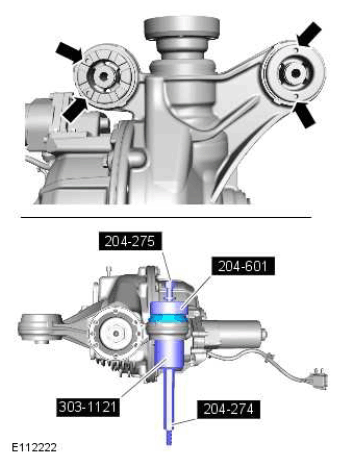

  1. NOTE: Make sure the new bushes are installed in the correct orientation.
    G11420723

    Special Tool(s):  204-275, 204-601, 303-1121, 204-274

  2. Refer to: Differential Case - Gtdi 2.0L Petrol/V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol (G1086733)  (Removal and Installation).
