Differential Case - GTDI 2.0L Petrol/V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol (G1086733): Installation

All vehicles

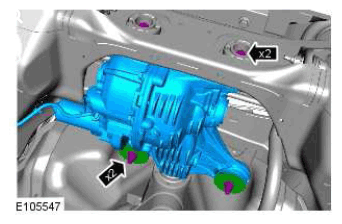

1. Torque Specification:

   M14 190 Nm

   M12 90 Nm

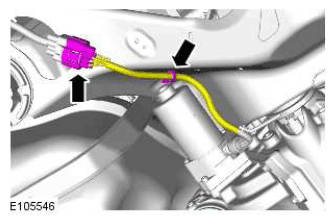

   Vehicles with supercharger

2. All vehicles

3. NOTE: Make sure that the alignment mark on the driveshaft is correctly aligned to the alignment mark on the differential case.

   Torque Specification: 75 Nm

4. NOTE:

   • This step only applies if a new driveshaft is being installed.

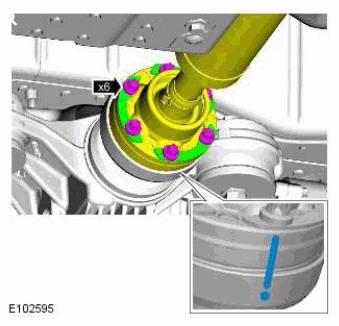

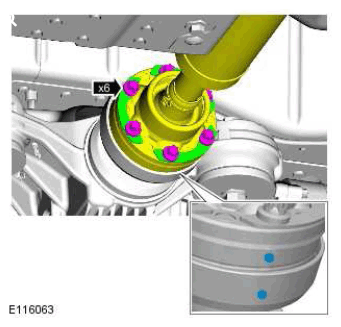

   • Using the 3mm hole on the differential case flange and paint alignment mark on the driveshaft (as indicated). Make sure that the alignment marks are correctly aligned.

   Torque Specification: 75 Nm

5. Refer to: Front Muffler (Removal and Installation).
6. Refer to: Rear Halfshaft - GTDi 2.0L Petrol/TD4 2.2L Diesel/TDV6 3.0L Diesel/V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol (Rear Drive Halfshafts, Removal and Installation).

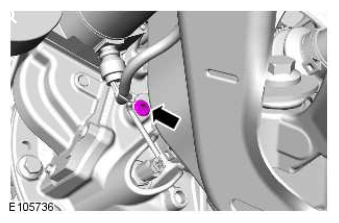

Check and top-up the differential case.

Torque Specification: 30 Nm
