Differential Draining And Filling - GTDI 2.0L Petrol/V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol (G1298578): Check

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

Refer to: Specifications - V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol (Rear Drive Axle/Differential, Specifications).
WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

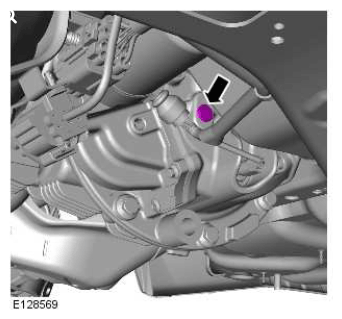

- Clean the area around the lubricant filler plug.
- Position container to collect fluid loss.

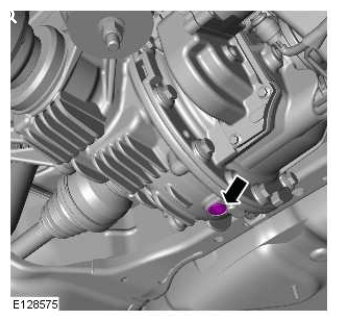

- Clean the area around the drain plug.
- Remove the fluid drain plug.
- Drain the differential lubricant.
