Differential Draining And Filling - GTDI 2.0L Petrol/V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol (G1298578): Adjustment
- 5.

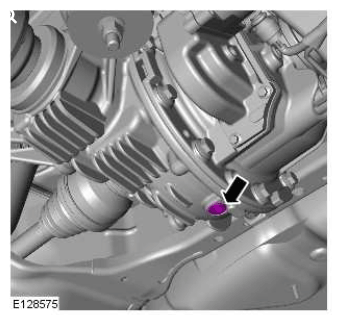

- Clean the drain plug.
- Torque Specification: 27 Nm

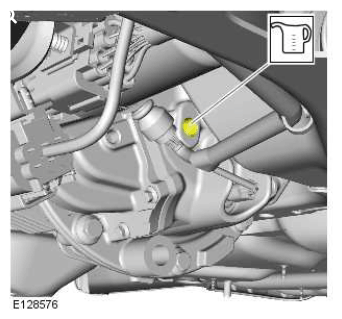

- 6.CAUTION:
- Do not fill the differential with lubricant up to the filler plug. The filler plug is only used to fill the differential with lubricant, and not to act as a level indicator.
- Make sure the correct specification and quanity of oil is used.
- Fill the differential with the correct amount of lubricant.
- 7.
- Install a new differential fluid drain plug
Renew Part: Rear differential drain plug.
- Torque Specification: 27 Nm
- Install a new differential fluid drain plug
