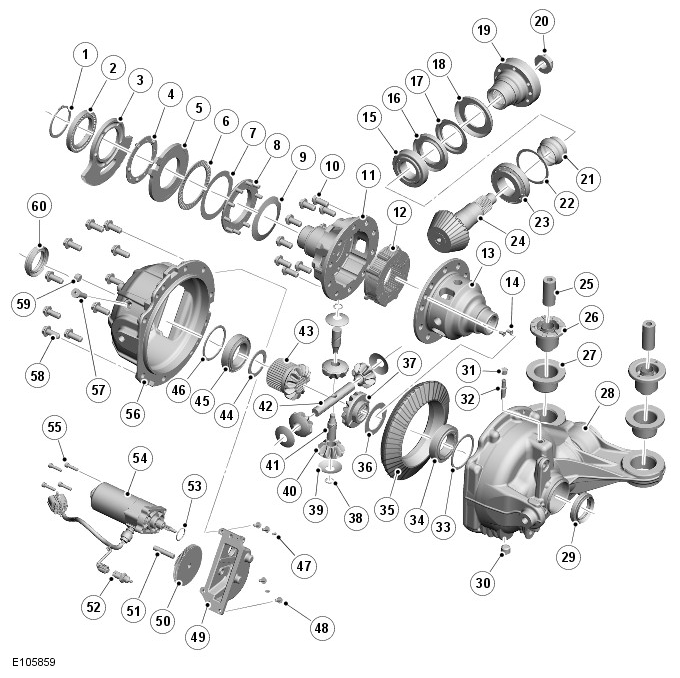

| 1 |
Circlip |
| 2 |
Bearing assembly |
| 3 |
Input actuator |
| 4 |
Actuator balls |
| 5 |
Output actuator |
| 6 |
Thrust race |
| 7 |
Shim |
| 8 |
Thrust plate |
| 9 |
Dished washer |
| 10 |
Bolt (10 off) |
| 11 |
Clutch basket |
| 12 |
Multi-plate clutch and pressure disc |
| 13 |
Differential case |
| 14 |
Screw (2 off) |
| 15 |
Bearing assembly |
| 16 |
Oil seal |
| 17 |
Oil slinger inner |
| 18 |
Oil slinger outer |
| 19 |
Input flange |
| 20 |
Pinion nut |
| 21 |
Collapsible spacer |
| 22 |
Shim |
| 23 |
Bearing assembly |
| 24 |
Pinion shaft |
| 25 |
Mounting insulator inner (2 off) |
| 26 |
Mounting insulator rubber (2 off) |
| 27 |
Mounting insulator outer (2 off) |
| 28 |
Carrier |
| 29 |
Oil seal |
| 30 |
Drain plug |
| 31 |
Vent |
| 32 |
Breather cap |
| 33 |
Shim |
| 34 |
Bearing assembly |
| 35 |
Drive gear |
| 36 |
Shim |
| 37 |
Right sun gear |
| 38 |
Circlip |
| 39 |
Thrust washer (4 off) |
| 40 |
Planet gear (4 off) |
| 41 |
Pin (2 off) |
| 42 |
Shaft |
| 43 |
Left sun gear |
| 44 |
Shim |
| 45 |
Bearing assembly |
| 46 |
Shim |
| 47 |
Dowel (2 off) |
| 48 |
Bolt (4 off) |
| 49 |
Reduction gear casing |
| 50 |
Reduction gear |
| 51 |
Shaft |
| 52 |
Temperature sensor |
| 53 |
O-ring seal |
| 54 |
Differential locking motor |
| 55 |
Screw (4 off) |
| 56 |
Cover |
| 57 |
Output actuator locking pin |
| 58 |
Bolt (9 off) |
| 59 |
Filler/Level plug |
| 60 |
Oil seal |
