Rear Drive Axle/Differential
>>
Description And Operation
>>

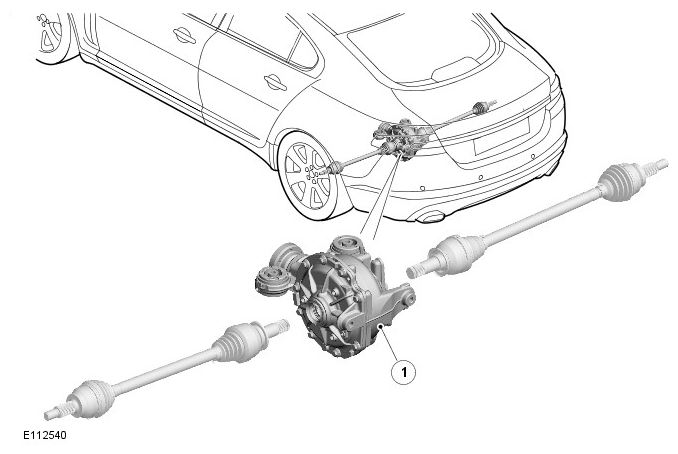

Rear Drive Axle And Differential - Component Location (G1549751)
>>
OPEN REAR DIFFERENTIAL - V8 5.0L PETROL, V6 3.0L S/C PETROL, GTDi 2.0L PETROL AND TDV6 3.0L DIESEL VEHICLES
OPEN REAR DIFFERENTIAL - V8 5.0L PETROL, V6 3.0L S/C PETROL, GTDi 2.0L PETROL AND TDV6 3.0L DIESEL VEHICLES
ITEM
DESCRIPTION
1
Open differential
