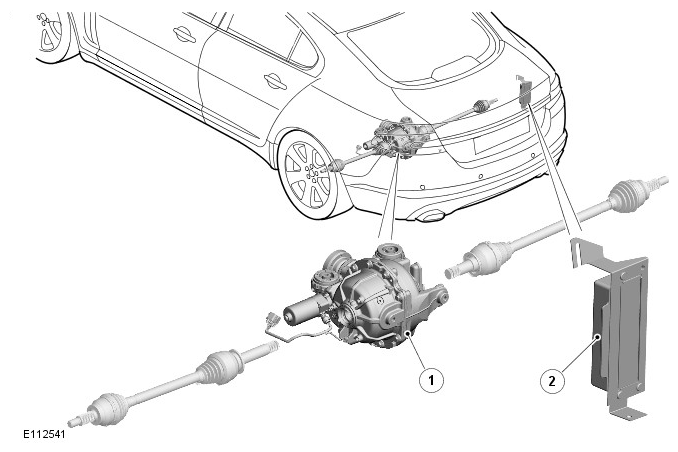

Rear Drive Axle And Differential - Component Location (G1549751)
>>
Electric Rear Differential - V8 S/C 5.0L Petrol - Up To 14MY
Electric Rear Differential - V8 S/C 5.0L Petrol - Up To 14MY
ITEM
DESCRIPTION
1
Electric rear differential
2
Rear Differential Control Module (RDCM)
