HALFSHAFT Seal (G1578933): Removal

NOTE:
  • Some illustrations may show the final drive unit removed for clarity.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  1. Refer to: Front Left Halfshaft  (Removal and Installation).
  2. CAUTION: Care must be taken to avoid damage to the seal register and running surface.

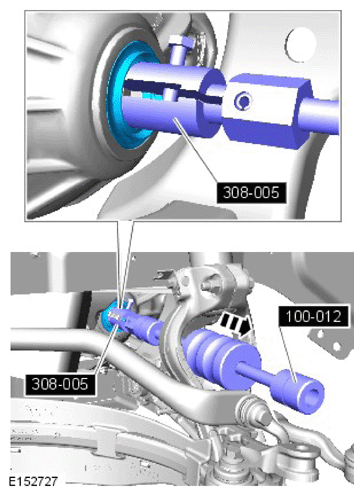

    G11589980

    Using the special tools, remove and discard the halfshaft oil seal.

    Special Tool(s):  100-012, 308-005
