HALFSHAFT Seal (G1578933): Installation

  1. CAUTION: Oil seals must be fitted dry.

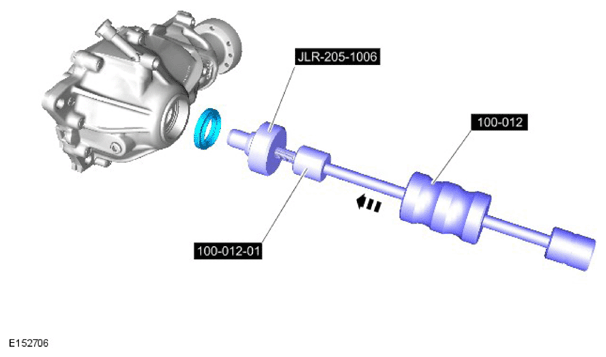

    G11589981

    Using the special tools, install a new halfshaft oil seal.

    Special Tool(s):  100-012, 100-012-01

  2. Refer to: Front Left Halfshaft  (Removal and Installation).
