Outer Constant Velocity (CV) Joint Boot (G1029572): Removal

  1. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  2. For additional information, refer to: Inner Constant Velocity (CV) Joint Boot (G1029571)  (Removal and Installation).
  3. G11420858

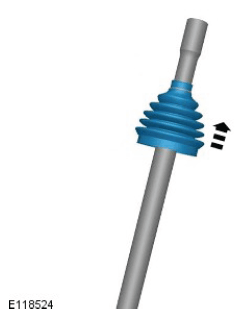

  4. G11420859
  5. CAUTION: Make sure the CV joint ball bearings do not drop out of the CV joint.
NOTE: Clean the constant velocity (CV) joint, removing as much of the old grease as possible.
