Inner Constant Velocity (CV) Joint Boot - AWD (G1578772): Removal

CAUTION: The final tightening of the suspension components must be carried out with the vehicle on its wheels.

NOTE:

Left Hand illustration shown, Right Hand is similar.
Some variation in the illustrations may occur, but the essential information is always correct.

Raise and lower the vehicle on a 4 post ramp.
WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Remove the rear halfshaft.
For additional information, refer to: Rear Halfshaft - GTDi 2.0L Petrol/V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol (Removal and Installation).
NOTE: Discard the retaining clips.

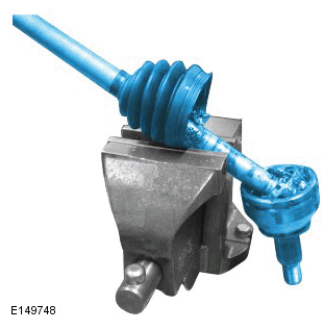

CAUTION:
- Use suitable protective covers to protect the halfshaft.
- Make sure that the CV joint is positioned as illustrated.
Equipment: Vise

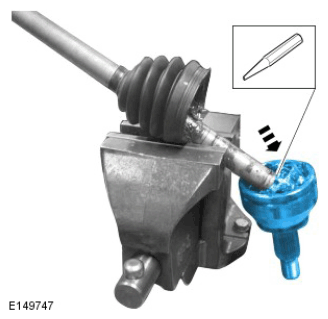

CAUTION: Using a suitable soft drift, strike the joint in the area indicated to release it from the shaft.

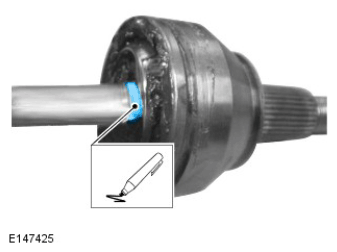

NOTE: Clean the constant velocity (CV) joint, removing as much of the old grease as possible.

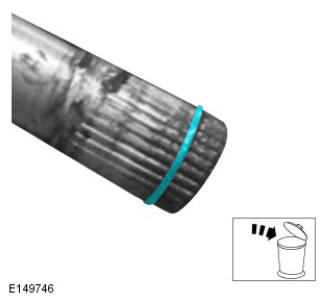

Remove and discard the circlip.
NOTE: Clean all the mating faces and reusable parts thoroughly and check for damage.

Remove the inner CV joint boot.
