Inner Constant Velocity (CV) Joint Boot - AWD (G1578772): Installation

  1. G11420868
  2. G11420869
  3. G11420870

    Install a new circlip.

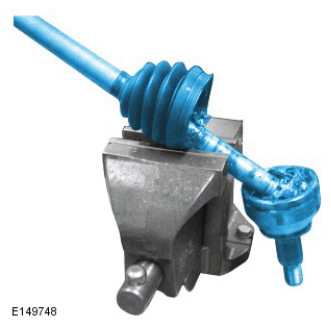

  4. CAUTION: Make sure that the CV joint is positioned as illustrated.
    NOTE: Make sure that the component is installed to the noted removal position.
    G11420871

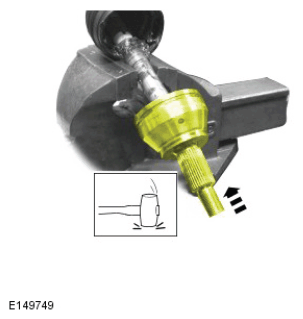

  5. NOTE:
    • Make sure that this component is installed to the noted removal position.
    • Using a suitable soft faced hammer, strike constant velocity (CV) joint in the direction shown to install the shaft.
    G11420872
  6. CAUTION:
    • Make sure the CV joint is not separated from the halfshaft.
    • Make sure enough air is present in the CV boot.
    • Only use lubricants meeting the Jaguar specification.
    NOTE: Install new retaining clips.
    G11420873

    Fill the CV joint with 40 grams of grease.

    Fill the CV joint boot with 100 grams of grease.

  7. Remove the rear halfshaft from the clamp.
  8. Install the rear halfshaft.

    For additional information, refer to: Rear Halfshaft - GTDi 2.0L Petrol/V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol  (Removal and Installation).
