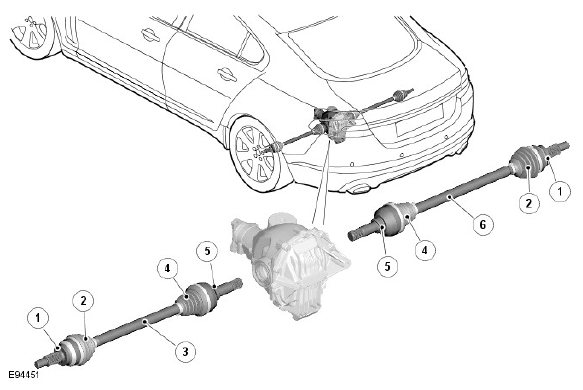

Component Location

G11420817
ITEM DESCRIPTION
1 Outer constant velocity joint
2 Outer constant velocity joint gaiter
3 Left hand halfshaft
4 Inner constant velocity joint gaiter
5 Inner constant velocity joint
6 Right hand halfshaft
