Brake Pads - Vehicles With: Standard Brakes (G1073733): Removal

CAUTION: Brake fluid will damage paint finished surfaces. If spilled, immediately remove the fluid and clean the area with water.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Do not work on or under a vehicle supported only by a jack.
    Always support the vehicle on safety stands.

    Raise and support the vehicle.

  2. Refer to Wheel and Tire (Removal and Installation).

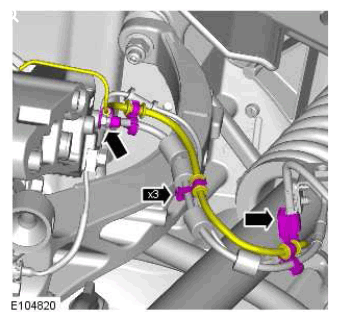

  3. G11423530
  4. CAUTION: Removal of the clips is a delicate procedure, damage will occur if any force is used.
    NOTE: Left-hand shown, right-hand similar.

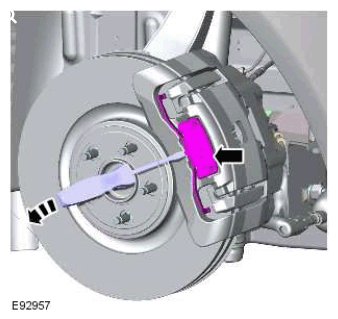

    G11423531
    • Lever the anti-rattle spring in the center of the spring until either side is released.
  5. WARNING: If the brake caliper piston seal is damaged a new brake caliper must be installed.
    CAUTION: Do not allow the brake caliper to hang on the brake hose.
    NOTE: Left-hand shown, right-hand similar.

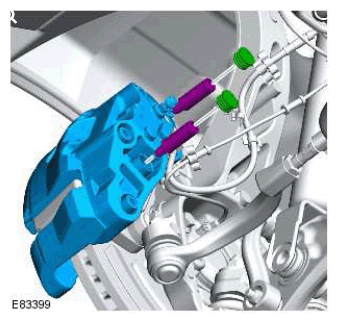

    G11423532
  6. NOTE: Left-hand shown, right-hand similar.

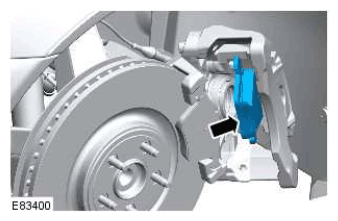

    G11423533
    • Release the clip.
  7. NOTE: Left-hand shown, right-hand similar.

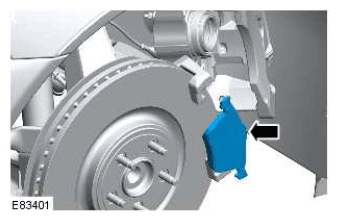

    G11423534

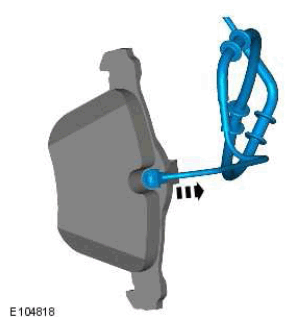

  8. G11423535
  9. Repeat the above procedure on the opposite side.
