Brake Disc Shield - Vehicles With: Standard Brakes (G1023384): Removal

  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Remove the brake disc.

    For additional information, refer to Brake Disc - Vehicles With: Standard Brakes  (Removal and Installation).

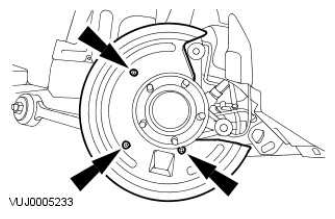

  3. G11423546

    Remove the brake disc shield.

    • Remove the 3 rivets.
