Brake Disc Shield - Vehicles With: Standard Brakes (G1023384): Notes

70.10.18

FRONT DISC SHIELD - RENEW

3000 CC, TDV6

0.7

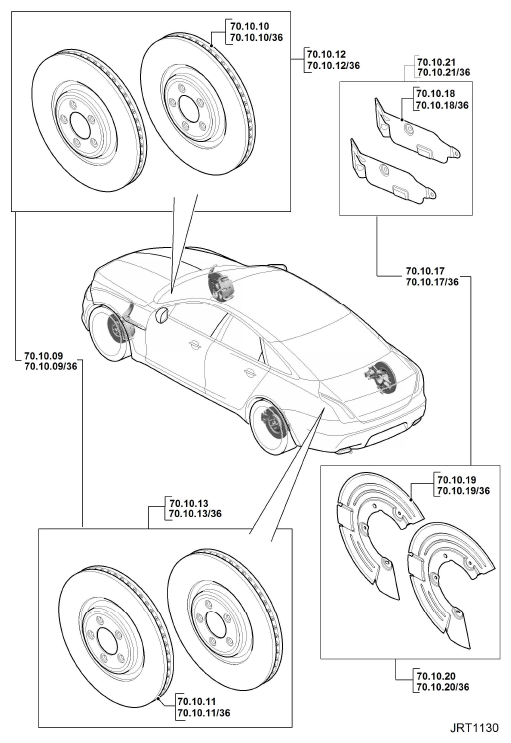

G11423544

70.10.18

FRONT DISC SHIELD - RENEW

5000 CC, AJ V8, SUPERCHARGED

0.7

G11423545
