Brake Disc Shield - Vehicles With: High Performance Brakes (G1062883): Removal

  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Remove the front brake disc.

    For additional information, refer to Brake Disc - Vehicles With: High Performance Brakes  (Removal and Installation).

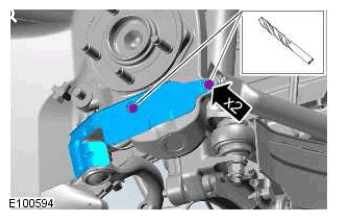

  3. G11423549

    Remove the brake disc shield.

    • Remove the 2 rivets.
