Brake Disc Shield - Vehicles With: High Performance Brakes (G1062883): Installation

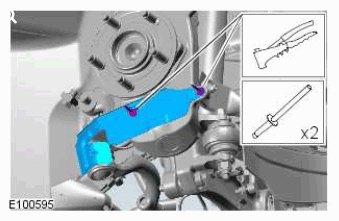

  1. G11423550

    To install, reverse the removal procedure.

    • Install the rivets.
