Brake Disc - Vehicles With: High Performance Brakes (G1073732): Removal

CAUTION: Brake discs must be renewed in pairs.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Do not work on or under a vehicle supported only by a jack.
    Always support the vehicle on safety stands.

    Raise and support the vehicle.

  2. Refer to Brake Pads - Vehicles With: High Performance Brakes  (Removal and Installation).

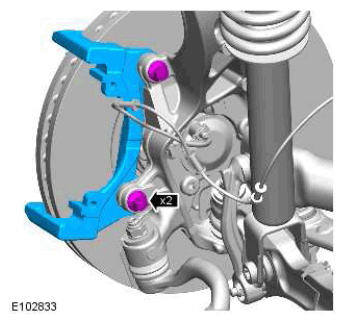

  3. G11423479

    Torque: 115 Nm

  4. G11423480
    • Remove the 2 clips.
    • Clean the components mating faces.
  5. Repeat the above procedure on the opposite side.
