Brake Caliper - Vehicles With: High Performance Brakes (G1073730): Removal

CAUTION: Brake fluid will damage paint finished surfaces. If spilled, immediately remove the fluid and clean the area with water.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Do not work on or under a vehicle supported only by a jack.
    Always support the vehicle on safety stands.

    Raise and support the vehicle.

  2. Remove the left-hand front wheel and tire.

    Refer to Wheel and Tire (Removal and Installation).

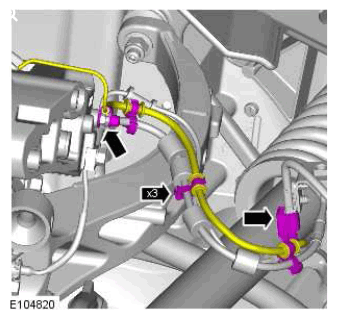

  3. G11423425

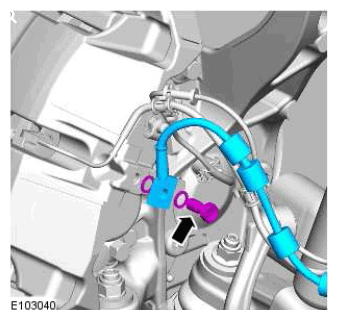

  4. CAUTION: Always plug any open connections to prevent contamination.
    NOTE:
    • To prevent the loss of brake fluid, using the special tool apply the brake pedal and set to 40mm (1.6 in) below the rest position.
    • Left-hand shown, right-hand similar.
    • Remove and discard the two sealing washers.
    G11423426

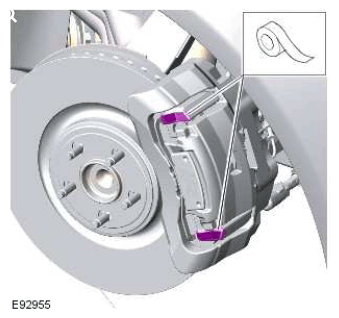

  5. NOTE: Left-hand shown, right-hand similar.
    G11423427

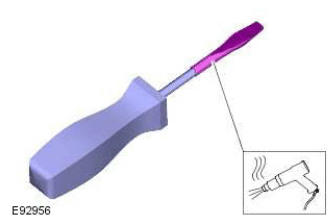

  6. G11423428

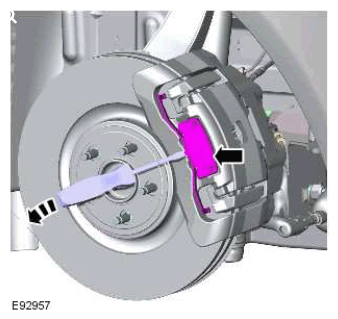

  7. CAUTION: Removal of the clips is a delicate procedure, damage will occur if any force is used.
    NOTE: Left-hand shown, right-hand similar.
    G11423429
    • Lever the anti-rattle spring in the center of the spring until either side is released.

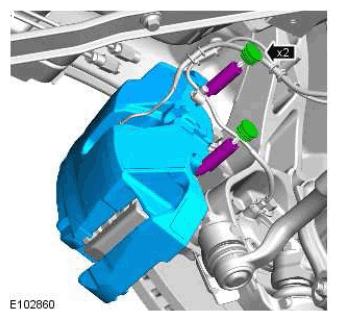

  8. WARNING: If the brake caliper piston seal is damaged a new brake caliper must be installed.
    CAUTION: Do not allow the brake caliper to hang on the brake hose.
    NOTE: Left-hand shown, right-hand similar.
    G11423430

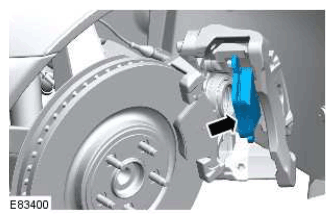

  9. NOTE: Left-hand shown, right-hand similar.
    G11423431
    • Release the clip.

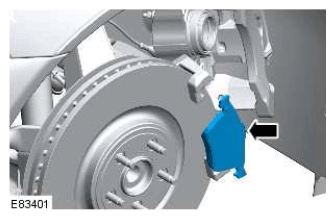

  10. NOTE: Left-hand shown, right-hand similar.
    G11423432
