Brake Vacuum Pump - GTDI 2.0L Petrol (G1569060): Removal

CAUTION: Make sure that all openings are sealed. Use new blanking caps.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Engine Cover - GTDi 2.0L Petrol (Interior Trim and Ornamentation, Removal and Installation).
  2. Refer to: Secondary Bulkhead Center Panel - GTDi 2.0L Petrol (Front End Body Panels, Removal and Installation).

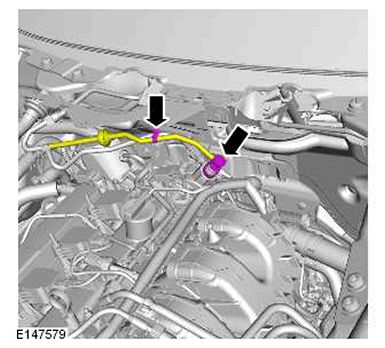

  3. G11414175

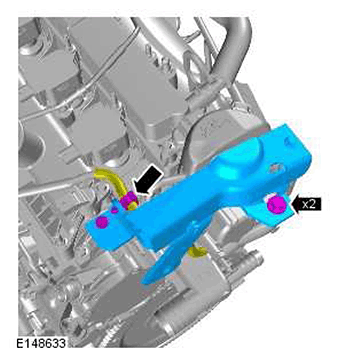

  4. G11414176

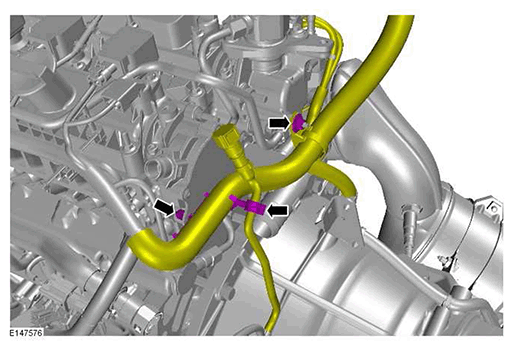

  5. G11414177

    Torque Specification: 9 Nm

  6. CAUTION: Be prepared to collect escaping oil.

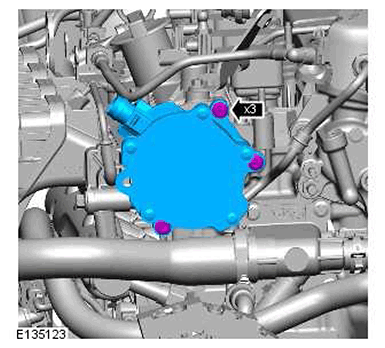

    G11414178

    Torque Specification: 10 Nm

  7. CAUTION: Discard the seal.

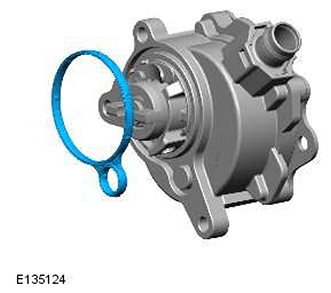

    G11414179
