Brake Booster (G978567): Removal

  1. Remove the brake master cylinder.

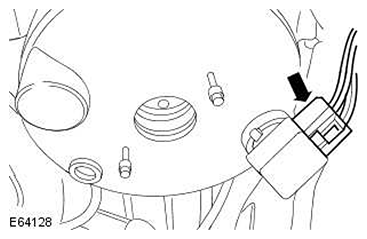

  2. G11414163

    Disconnect the brake booster vacuum electrical connector.

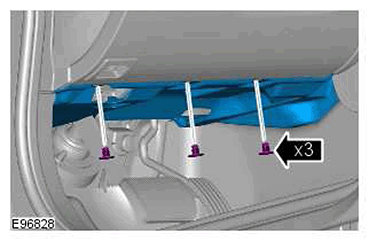

  3. G11414164

    Remove the lower trim panel.

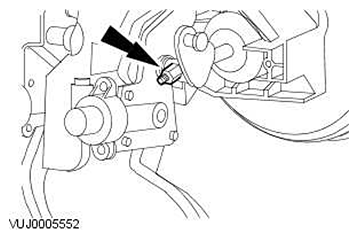

  4. G11414165

    Remove the retaining nut.

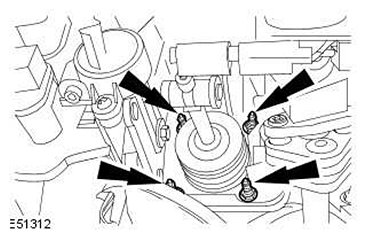

  5. G11414166

    Remove the brake booster retaining nuts.

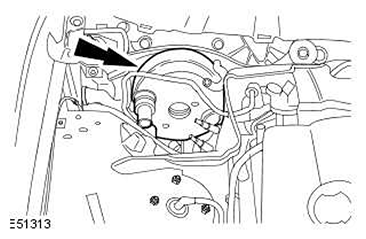

  6. G11414167

    Remove the brake booster.
